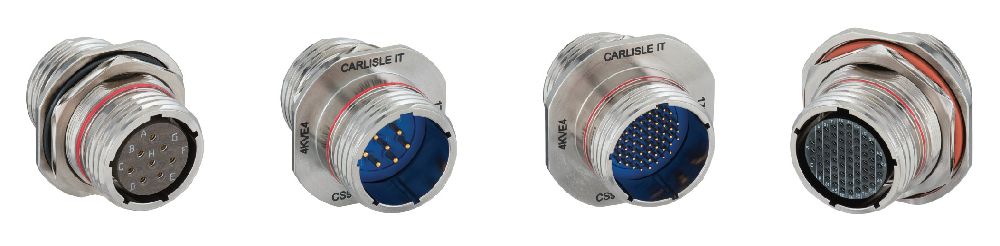

SEAL3D™ Connector

SEAL3D™, our sealed 38999 III adapter connectors, are bulkhead-mount interconnect devices that:

  • Can be designed for most MIL-STD-1560 contact patterns
  • Are configurable to socket/pin, pin/socket, or pin/pin mating faces
  • Feature lighter aluminum shells that are fully sealed to 1x10-5 cc/sec helium leak rate (1x10-6 cc/sec air)
  • Provide fully sealed performance from -55 °C to 150 °C
  • Meet all applicable requirements of MIL-DTL-38999
  • Are up to 50% lighter than stainless steel sealed feed-thru connectors

FEATUREBENEFIT
Fully sealed to 1x10-5 cc/sec helium leak rate (1x10-6 cc/sec air)• Meet the requirements of most avionics and bulkhead applications
Bulkhead adapter• Configure to either wall mount or jam nut shells
Interfaces for M38999• All socket and pin contacts meet mating and performance of M39029
Size 9-25 shells• Select from most MIL-STD-1560 contact patterns for standard or high-density contacts
Double-end triple-start threads• Meets all interface and vibration performance requirements of MIL-DTL-38999

Suggested Applications:

  • Aerospace & military
    • Avionics
    • IFEC
    • Feed thru in aircraft pressure bulkhead or fuselage
    • Environmentally controlled systems
  • Any weight reduction feed-thru application
