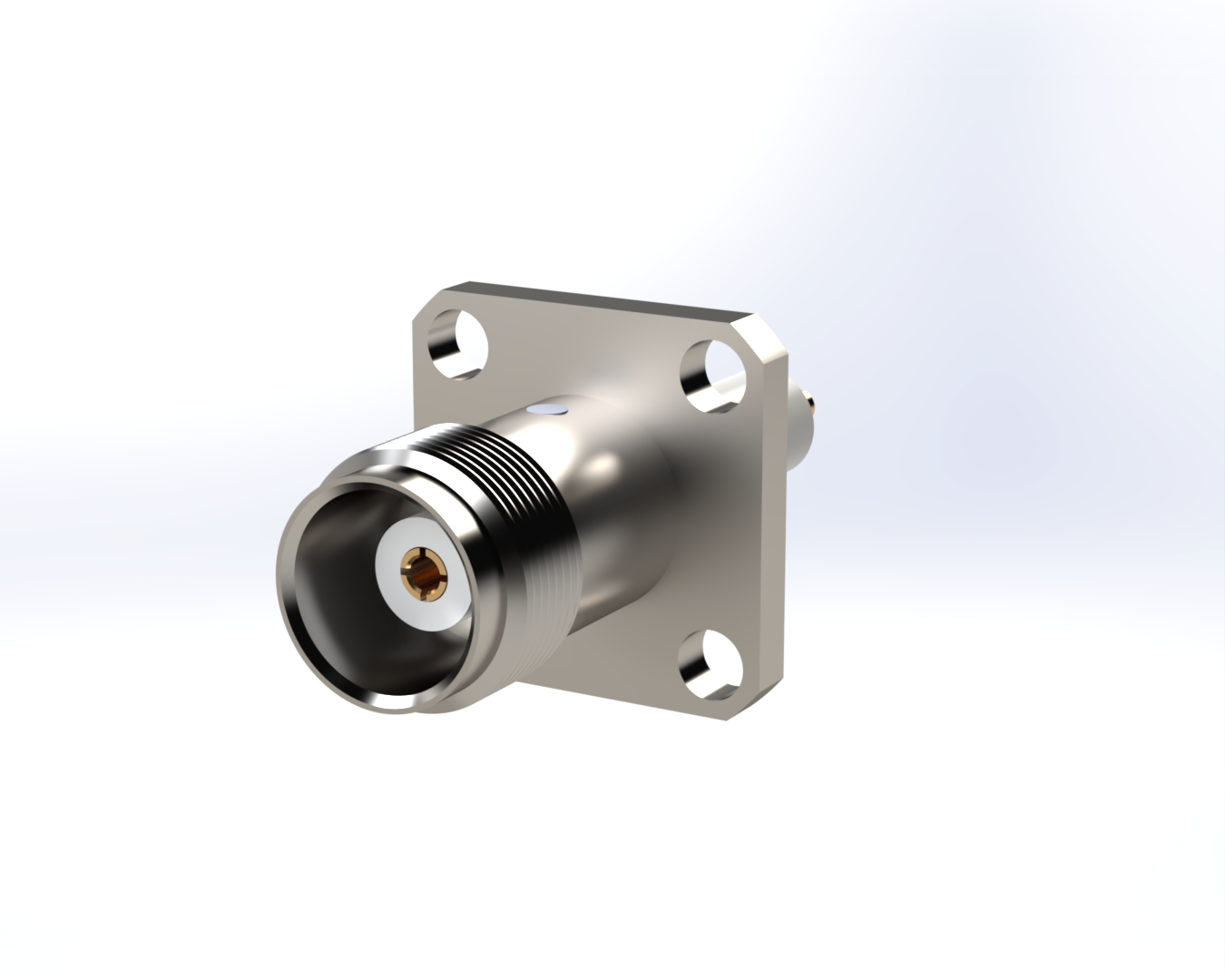

TNC Female Straight 4-Hole Flange Panel Mount

The TNC Female Straight 4-Hole Flange Panel Mount from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 9028CCSF

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	Terminal
Housing Finish	Passivate
RF Connector Specifications
Connector Series	TNC
Body Style	Straight
Impedance	50 ohms
Mounting Style	4 Hole PNL.
Detent	N/A
Gender	Female
Hermetic	No
Body Plating	Gold
Termination	Terminal
Cable Termination	N/A
Interface Type	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE Teflon
Center Contact Material	BeCu
Operating Temperature	-65°C to +125°C
Voltage	500 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	.25 dB max @ 18 GHz
Max Frequency	18 GHz
Body Material	303 SST
