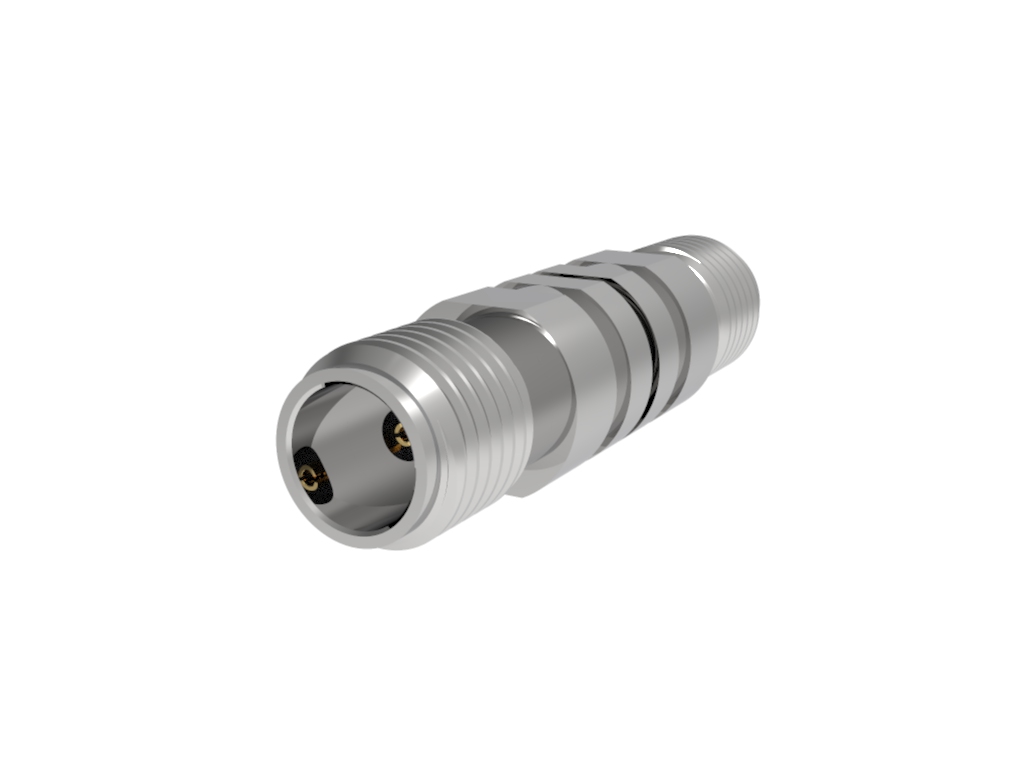

1.85mm Female to 1.85mm Female Coaxial Adapter

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 1.85mm Jack, Female Socket, 50 Ohms
SKU: TMA-8FS-8FS-00
Adapter Coaxial Connector 1.85mm Jack, Female Socket To 1.85mm Jack, Female Socket, 50 Ohms
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 67 GHz
Housing Finish Passivated SST
Dielectric Material PTFE
Operating Temperature -55°C to + 85°C
Insertion Loss 0.2 dB
Number of Ports 2
Gender Female
Body Orientation Straight
RF Series 1.85 mm
RF Series 2 1.85 mm
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
T & M Specifications
Series Between Series
Shield Termination Threaded
Fastening Type Threaded
*
*
*
