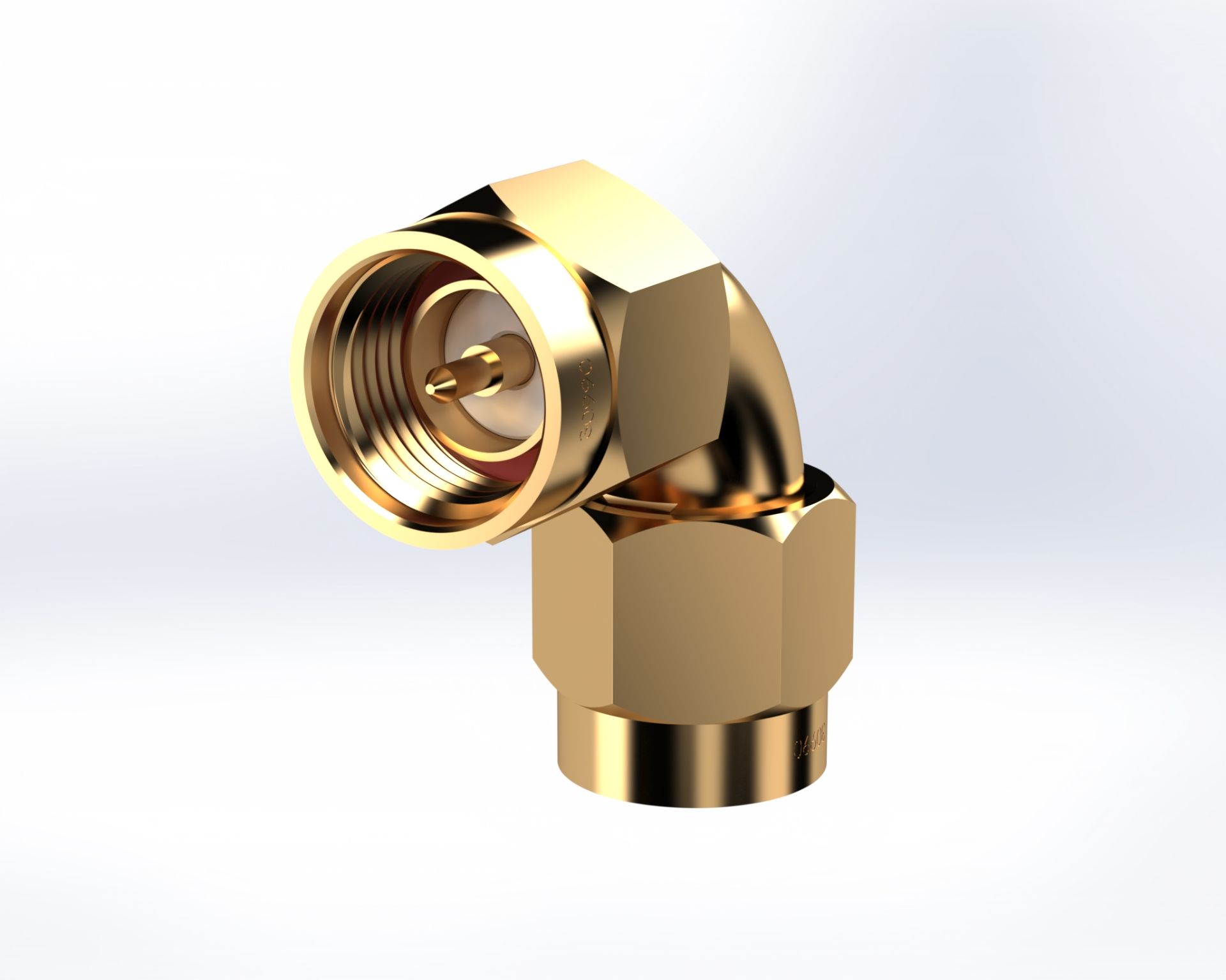

Radius Right Angle SMA Male to SMA Male

SKU: 5065

Products specifications

Attribute name	Attribute value
RF Connector Specifications
Max Frequency	18 GHz
Center Contact Plating	Gold
Body Material	304 SST
Mating Cycles	500 cycles min
Insertion Loss	.20 dB max @ 18GHz
Operating Temperature	-65°C to +165°C
Voltage	335 Vrms max @ sea level
RF Adapter Specifications
Ohm	50 ohms
Body Style	Straight
Interface 1 Type	SMK (2.92mm)
Interface 1 Gender	Male
Interface 2 Type	SMK (2.92mm)
Interface 2 Gender	Female
Mount	N/A
Detent	N/A
Hermetic	No
Body Plating	Passivate
