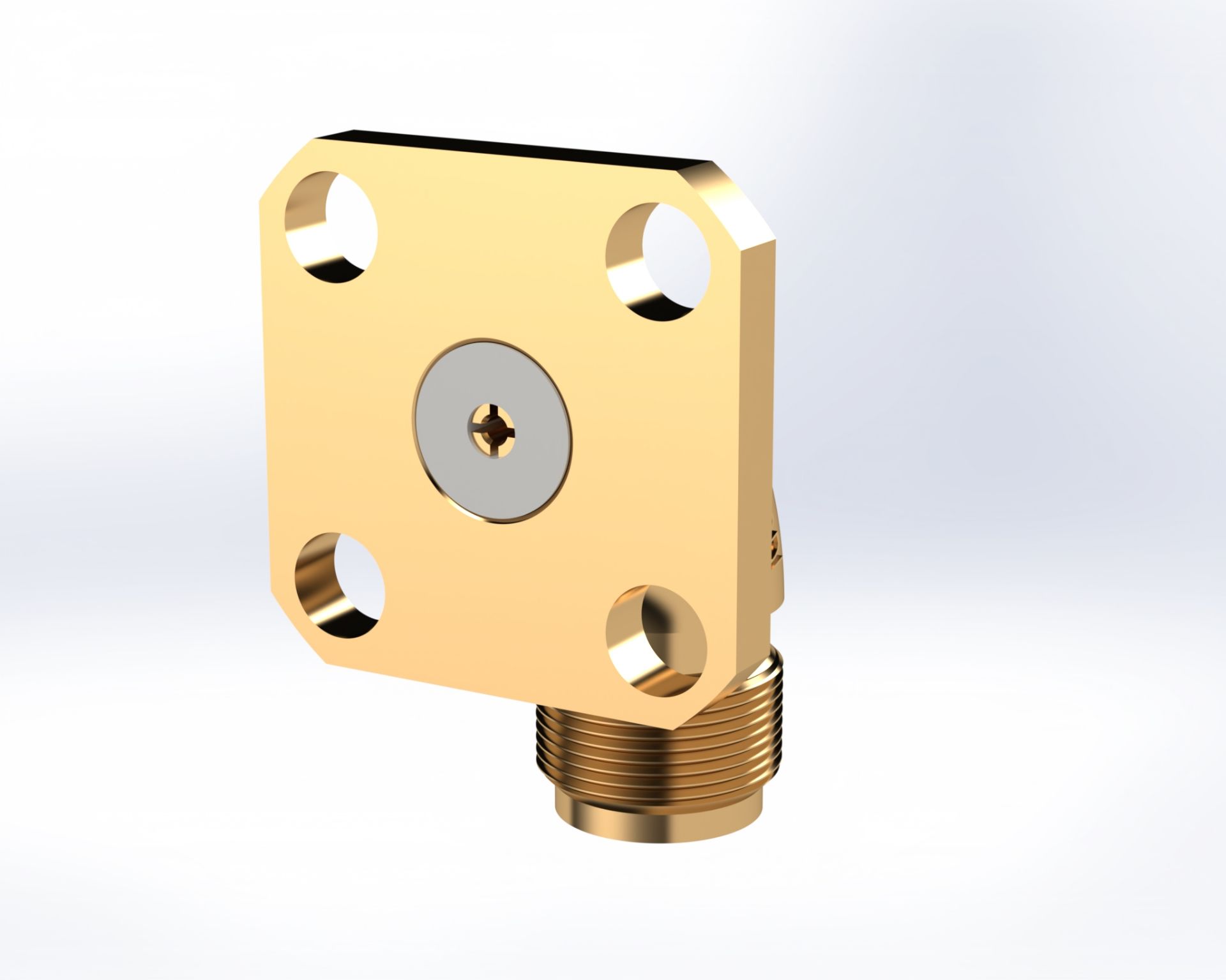

SMA Female Radius Right Angle to Field Replaceable(.02)0" PIN

The SMA Female Radius Right Angle to Field Replaceable(.02)0" PIN from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

Call for pricing

Distributor	Quantity	Buy

SKU: 5530-2CC

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Contact Termination	Field Rep.
Housing Finish	Gold
RF Connector Specifications
Connector Series	SMA
Body Style	Swept Right Angle
Impedance	50 ohms
Mounting Style	N/A
Detent	N/A
Gender	Female
Hermetic	Yes
Body Plating	Passivate
Termination	Field Rep.
Cable Termination	N/A
Interface Type	Straight
Center Contact Plating	Gold
Dialectric Material	PTFE
Center Contact Material	BeCu
Operating Temperature	-65°C to +125°C
Voltage	335 Vrms max @ sea level
Mating Cycles	500 cycles min
Insertion Loss	.10 dB max @ 6 GHz
Max Frequency	18 GHz
Body Material	304 SST
