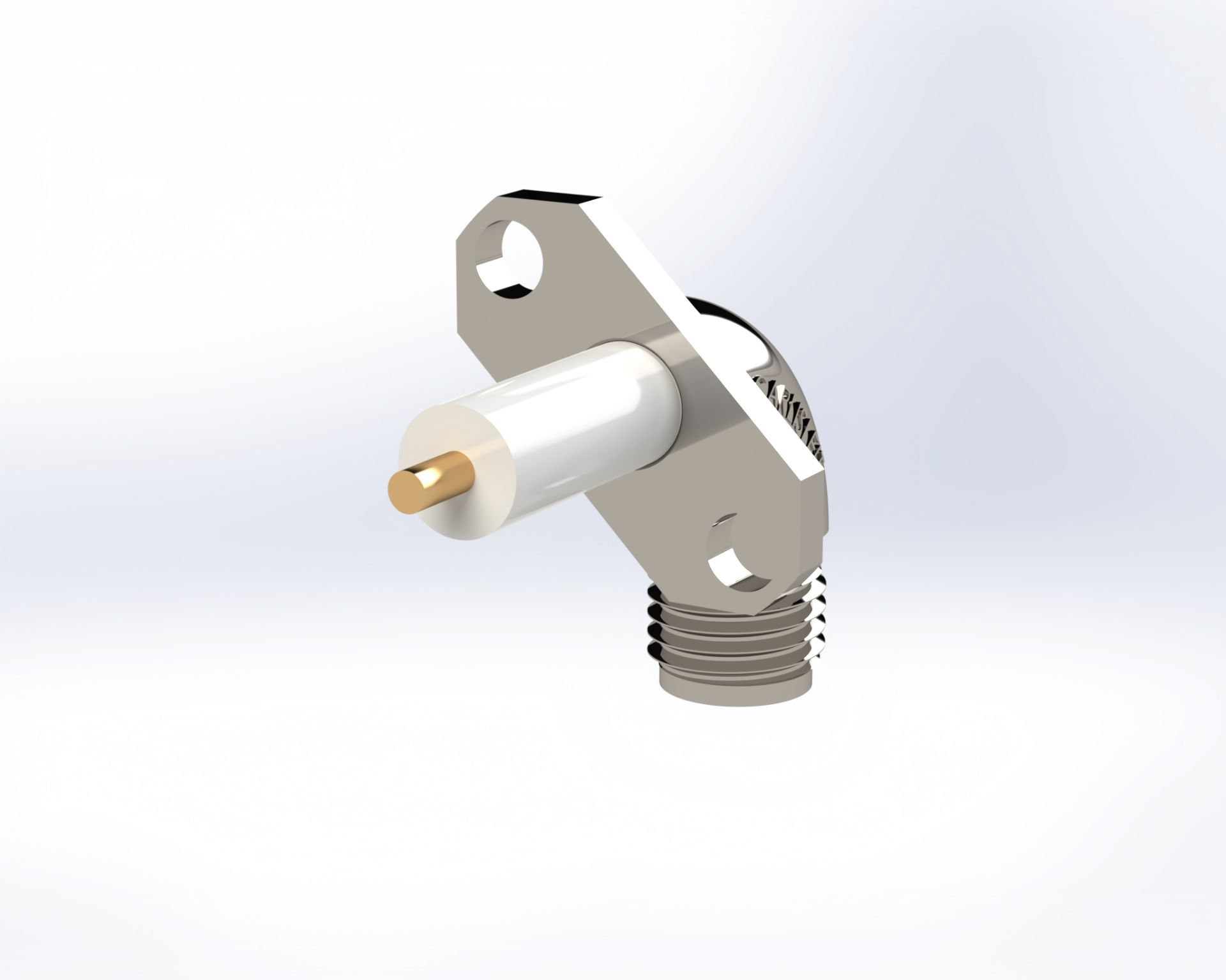

SMA Female Radius Right Angle,45 Degree (Left),2-Hole, Straight Termination

The SMA Female Radius Right Angle,45 Degree (Left),2-Hole, Straight Termination from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.
SKU: 5649CCSF
Products specifications
Attribute name Attribute value
Contact Termination Terminal
Housing Finish Passivate
RF Connector Specifications
Connector Series SMA
Body Style Swept Right Angle
Impedance 50 ohms
Mounting Style 2 Hole PNL.
Detent N/A
Gender Female
Hermetic No
Body Plating Passivate
Termination Field Rep.
Cable Termination N/A
Interface Type Straight
Center Contact Plating Gold
Dialectric Material PTFE
Center Contact Material BeCu
Operating Temperature -65°C to +125°C
Voltage 335 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss .10 dB max @ 6 GHz
Max Frequency 18 GHz
Body Material 304L SST
