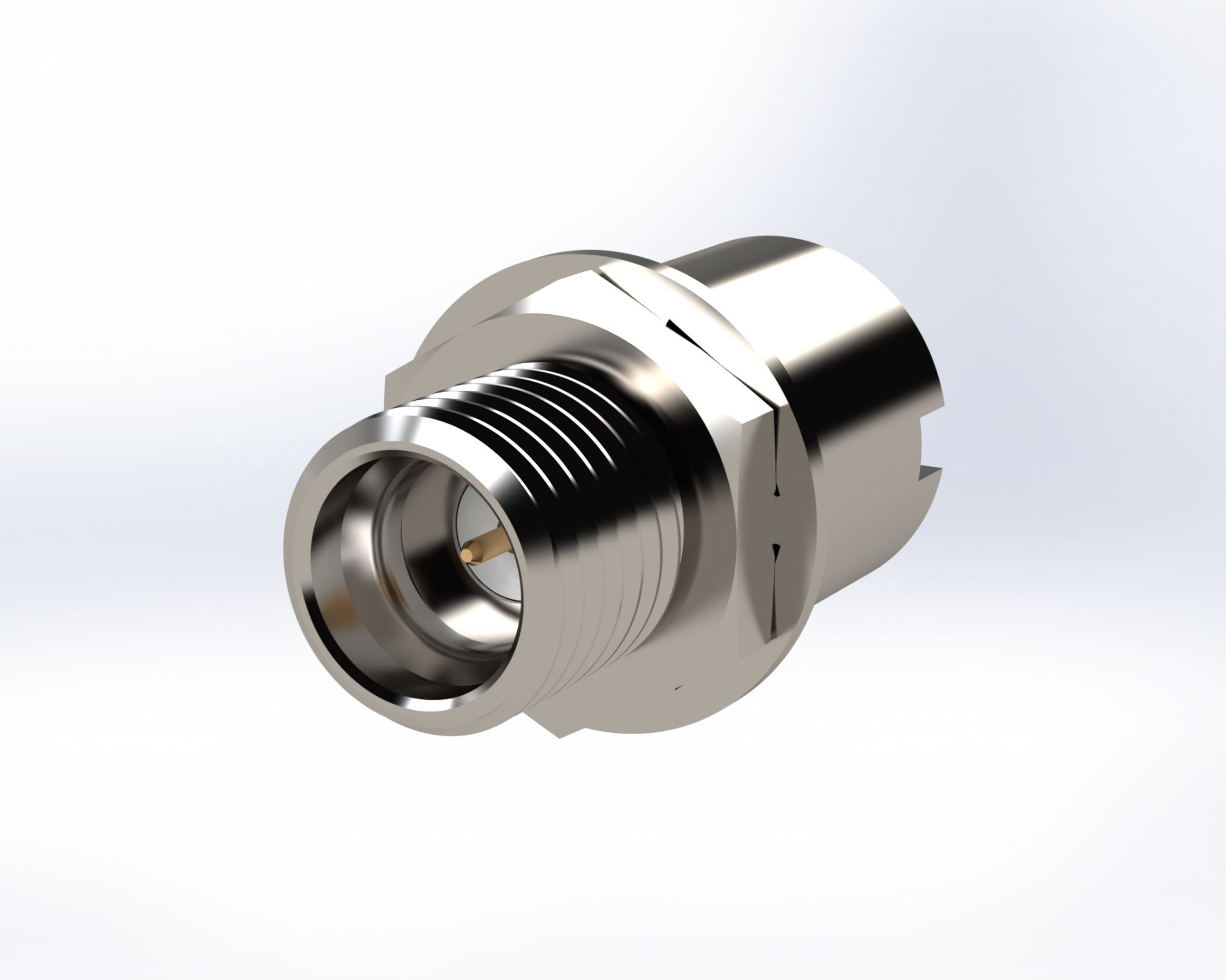

Sraight SMP Male Bulkhead Full Detent to SMP Male Catchers Mitt

Distributor Quantity Buy
SKU: P916-1CCSF
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 18 GHz
Center Contact Plating Gold
Body Material 303 SST
Mating Cycles Dependent on Detent
Insertion Loss .30 dB max @ 18 GHz
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMP
Interface 1 Gender Female
Interface 2 Type SMP
Interface 2 Gender Female
Mount N/A
Detent N/A
Hermetic No
Body Plating Gold
*
*
*
Products specifications
Attribute name Attribute value
RF Connector Specifications
Max Frequency 18 GHz
Center Contact Plating Gold
Body Material 303 SST
Mating Cycles Dependent on Detent
Insertion Loss .30 dB max @ 18 GHz
Operating Temperature -65°C to +165°C
Voltage 335 Vrms max @ sea level
RF Adapter Specifications
Ohm 50 ohms
Body Style Straight
Interface 1 Type SMP
Interface 1 Gender Female
Interface 2 Type SMP
Interface 2 Gender Female
Mount N/A
Detent N/A
Hermetic No
Body Plating Gold
