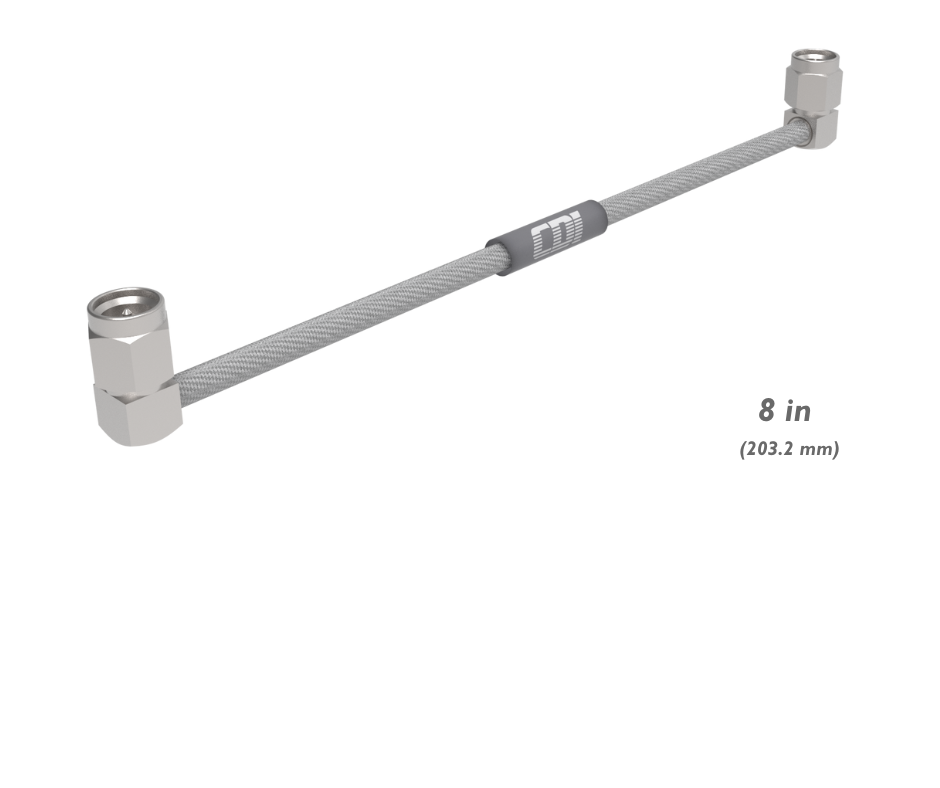

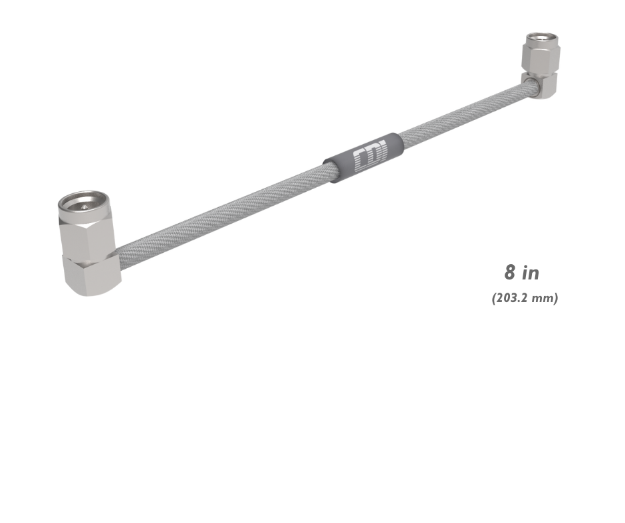

SEMI FLEX(R) SMA(M) R/A, 600, SMA(M) R/A, 8"

SKU: 137376003208
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Dielectric Material PTFE
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Impedance 50 ohms
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
Operating Temperature -50°C to + 105°C
Max Frequency 18 GHz
T & M Specifications
Series SMA
Connector Style Right Angle to Right Angle
Shield Termination Solder
Fastening Type Threaded
RF Products
Insertion Loss 1.07
Gender Male to Male
*
*
*
