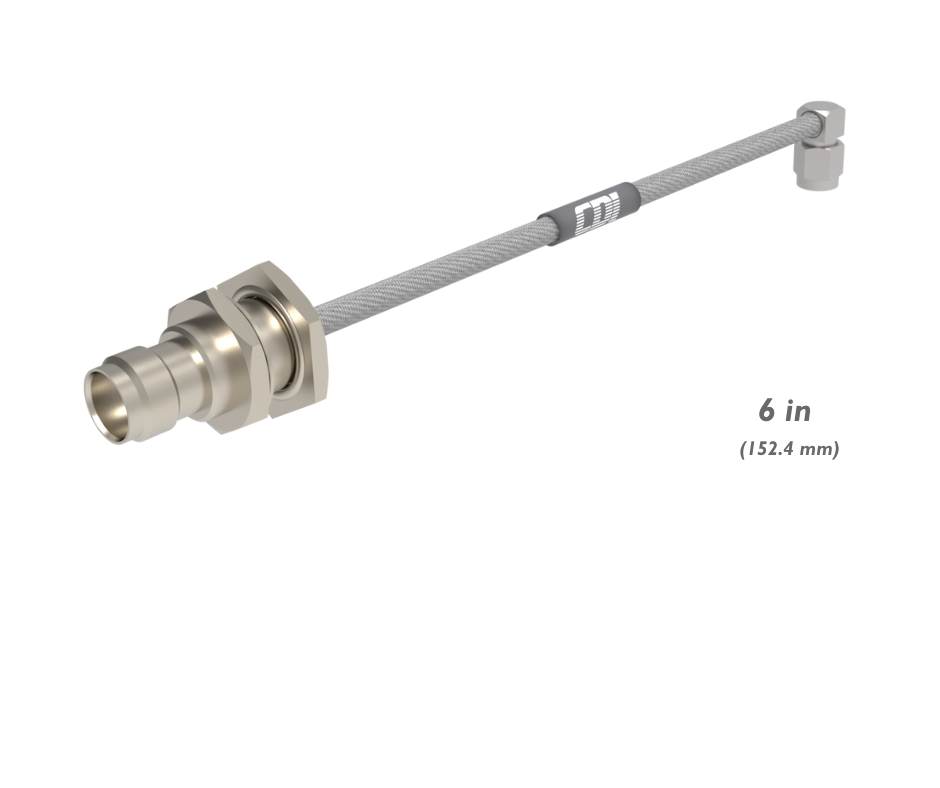

SEMI FLEX(R) TNC(F) BHD TO SMA(M) R/A ON 601, 6"

SKU: 134376013206
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Dielectric Material PTFE
RF Connector Specifications
Mounting Style Bulkhead
Impedance 50 ohms
Mating Cycles 500 Cycles
Operating Temperature -50°C to + 105°C
Center Contact Plating Gold
Max Frequency 18 GHz
Body Material SST
Center Contact Material BeCu
T & M Specifications
Series TNC - SMA
Connector Style Straight to Right Angle
Shield Termination Solder
Fastening Type Threaded
RF Products
Insertion Loss 0.92
Gender Female to Male
*
*
*
