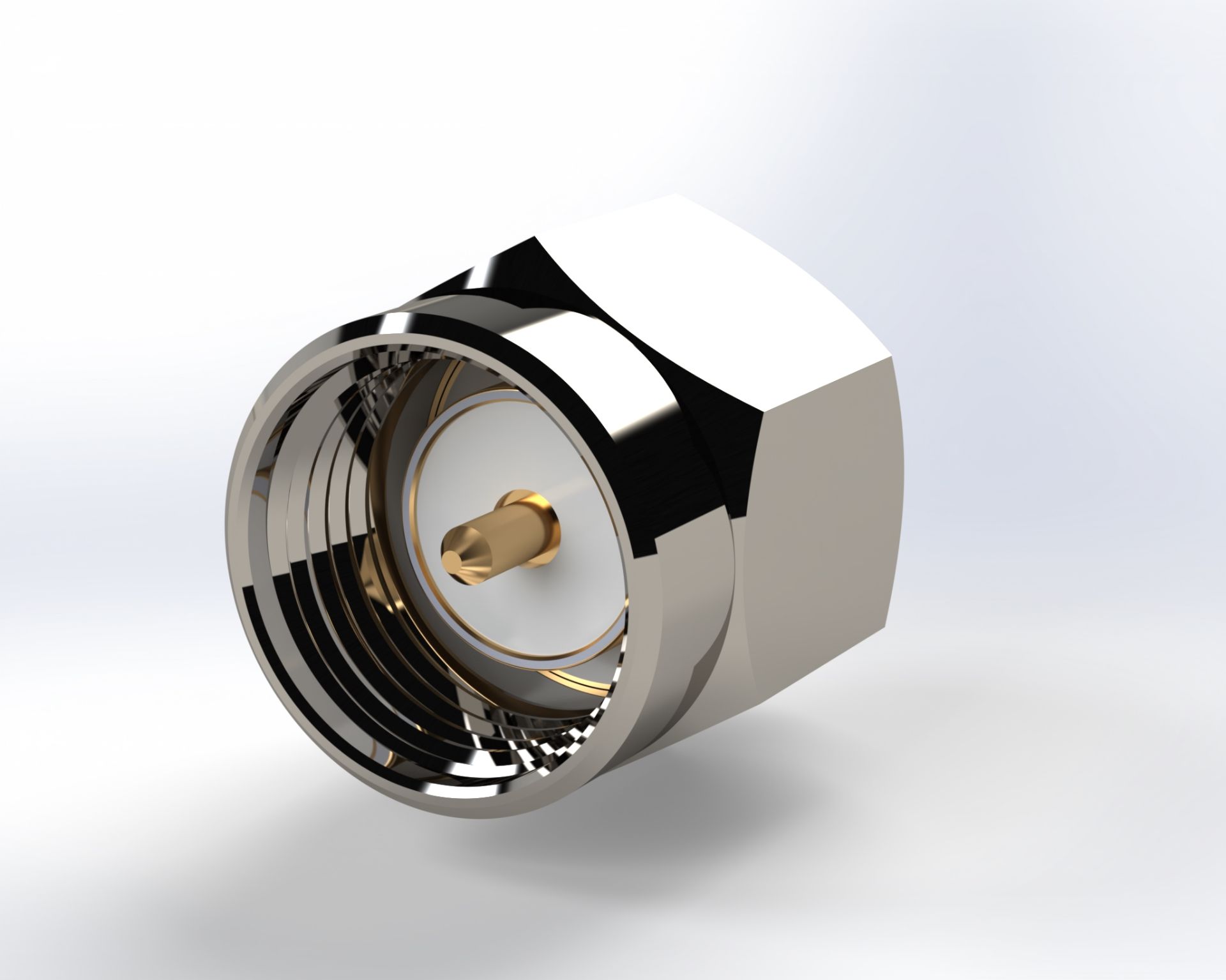

SMA Male Connector for .141 Semi Rigid Cable

The SMA Male Jack from Amphenol CDI is engineered for reliability and precision in high-frequency signal transmission. Ideal for aerospace, defense, and telecommunications, this connector ensures consistent performance in demanding environments.

SKU: 5285-1

Distributor	Quantity	Buy

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Insertion Loss	.03 √f(GHz)
Frequency	18 GHz
Contact Termination	COAX
Housing Finish	Gold
Gender	Male
Body Orientation	Straight
RF Series	SMA
RF Connector Specifications
Hermetic	No
Body Plating	Gold
Termination	Terminal
Cable Termination	.141 S/R
Center Contact Plating	Gold
Center Contact Material	Brass
Voltage	500 Vrms max @ sea level
Mating Cycles	500 Cycles
Body Material	303 SST
