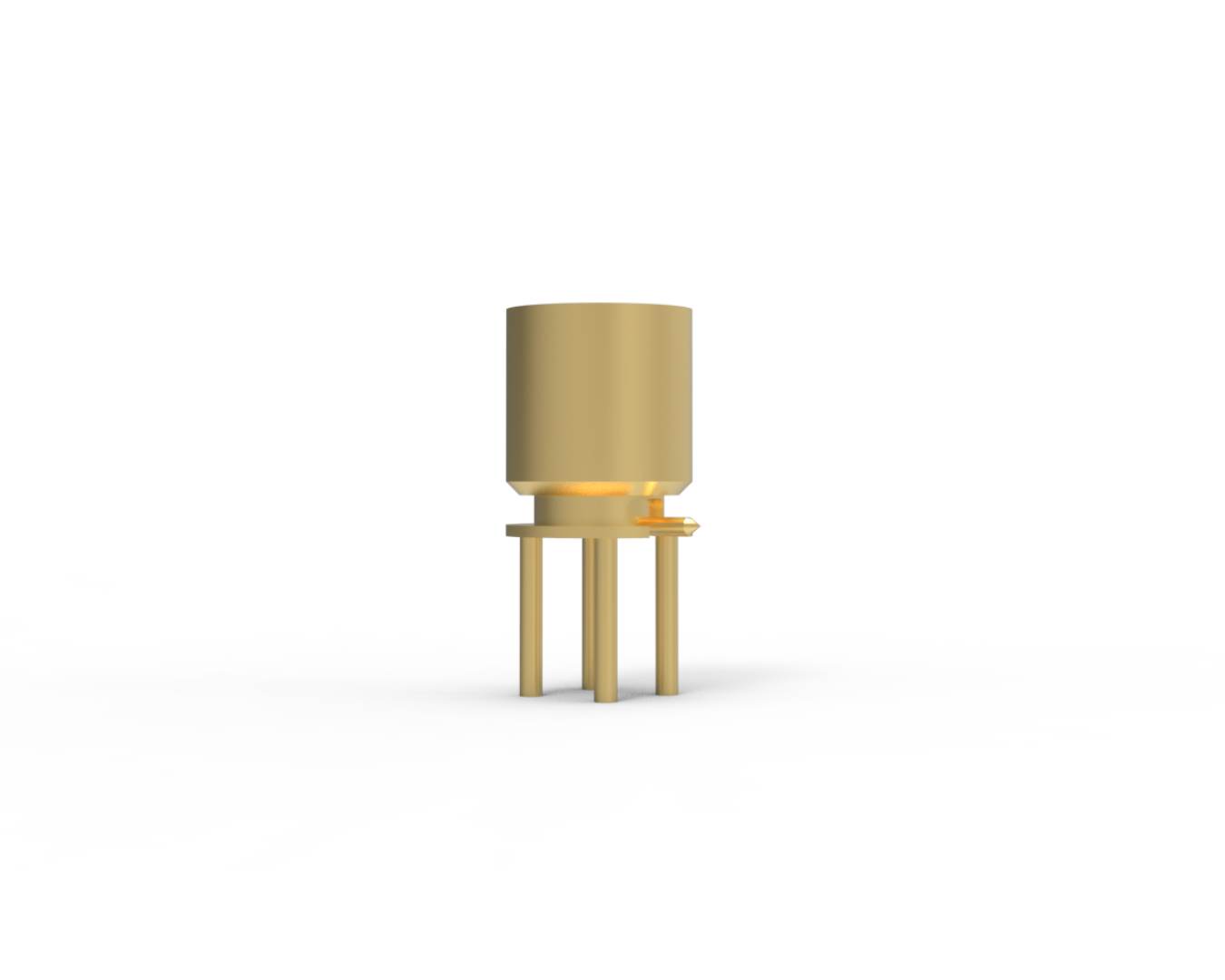

SMP Male Straight PCB Surface Mount Connector, Limited Detent (.140)

SKU: P797-9CC

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Impedance	50 ohms
Dielectric Material	Torlon
Operating Temperature	-65°C to +165°C
Insertion Loss	.10 dB max @ 18 GHz
Frequency	18 GHz
Contact Termination	PCB
Housing Finish	Gold
Gender	Male
Body Orientation	Straight
RF Series	SMP
RF Connector Specifications
Mounting Style	PCB Surface
Detent	Smooth Bore
Hermetic	No
Body Plating	Gold
Termination	PCB
Interface Type	Surface
Center Contact Plating	Gold
Center Contact Material	Brass
Voltage	335 Vrms max @ sea level
Mating Cycles	1000 cycles min
Body Material	Brass or BeCu
