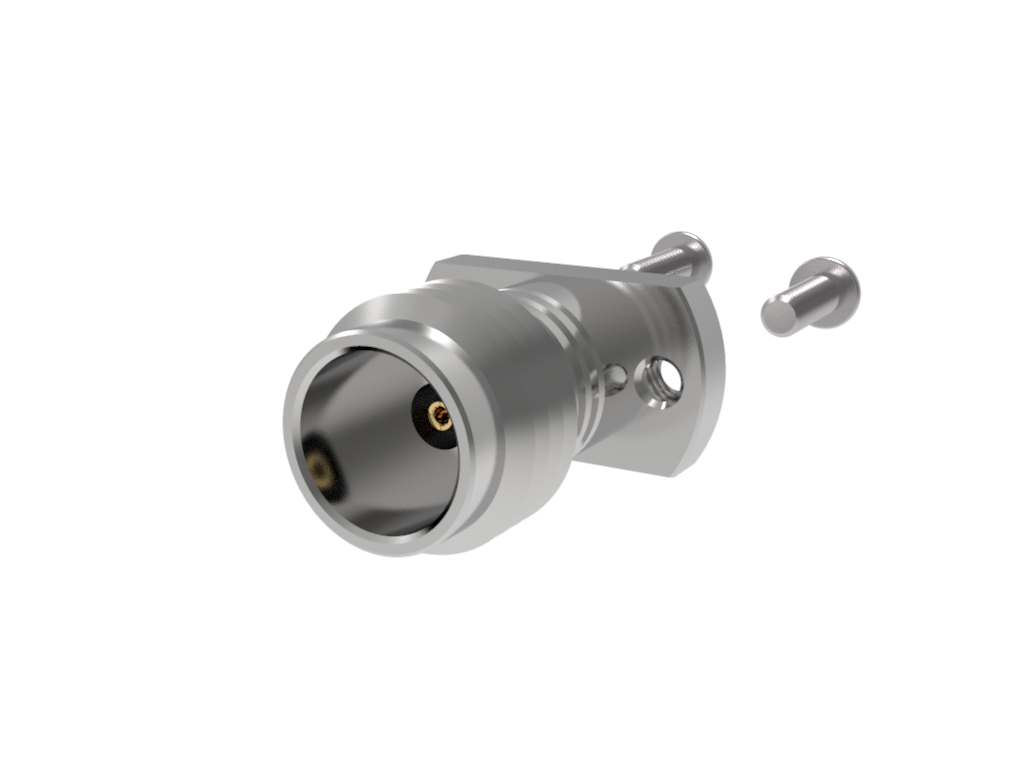

1.85mm Solderless Female Vertical Stripline

1.85mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole
SKU: TMB-V8F2-3L1
Products specifications
Attribute name Attribute value
Category Coaxial Connector (RF)
Packaging Tray
Contact Termination Compression
Number of Ports 1
Housing Finish Passivated SST
RF Connector Specifications
Operating Temperature -55°C to + 85°C
Gender Female
Impedance 50 ohms
Mounting Style Surface
Max Frequency 67 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dialectric Material PTFE
Voltage 500 Vrms max @ sea level
Mating Cycles 500 cycles min
Insertion Loss 0.2 dB
T & M Specifications
Series 1.85 mm
Connector Style 1.85 mm
Connector Type Jack, Female Socket
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
