0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS

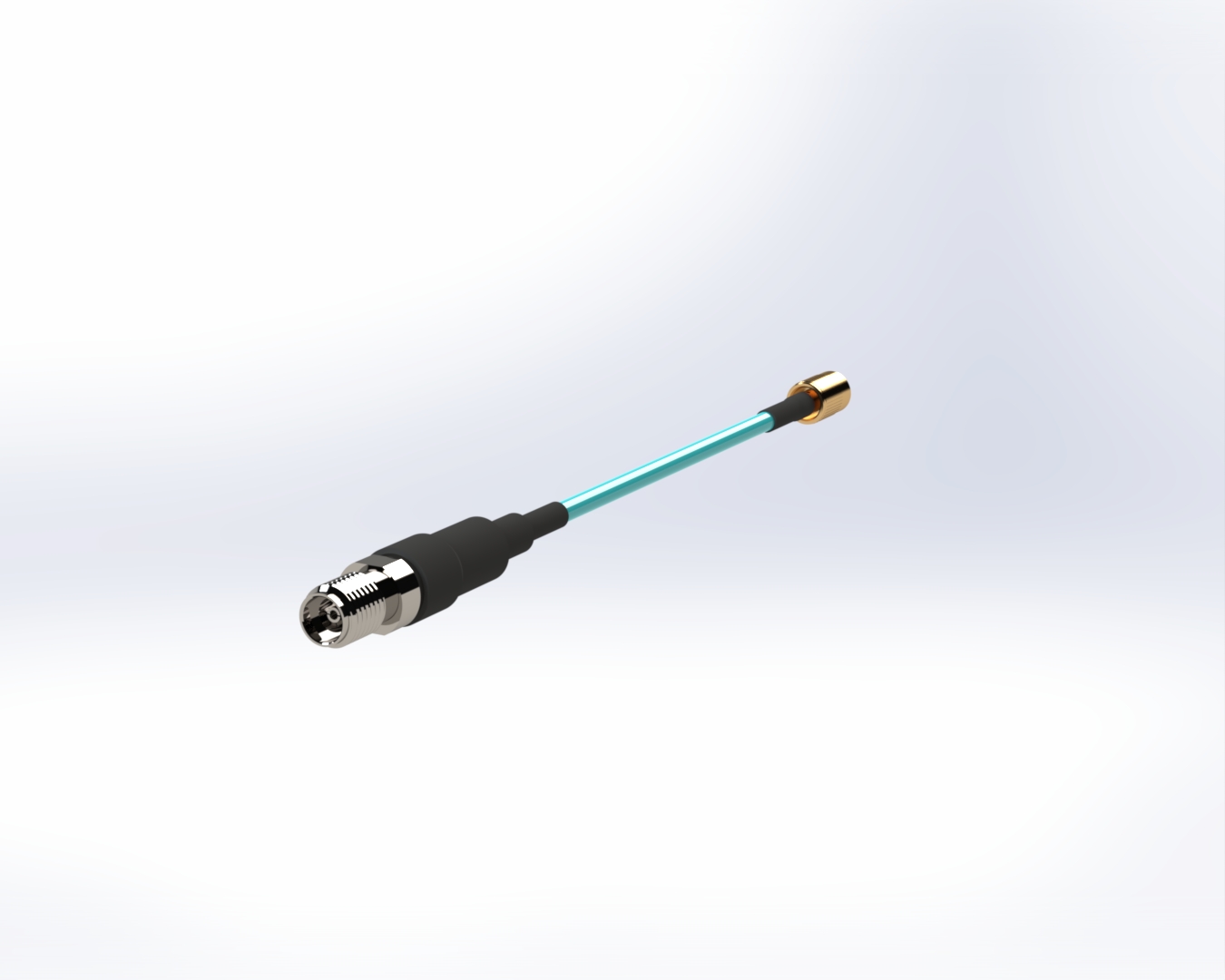

CoreHC 0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS
SKU: TM7SSSTS5FS031C
CoreHC 0.78 Assembly, SSMP Female to 3.5mm Female, 31cm, 4pS
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Gold
RF Connector Specifications
Gender Female to Female
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series 3.5 mm
Connector Style SSMP ST to 3.5 mm
Connector Type N/A
Shield Termination Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
