CoreHC™ Ganged RF Interconnect System

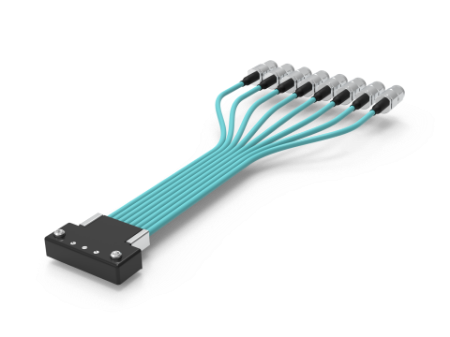

CoreHC™ is a high-performance, solderless, ganged coaxial solution designed for direct PCB attachment. Featuring a 2.5mm pitch, it enables engineers to maximize space savings while reducing PCB size and cost. The DC-70GHz connector minimizes trace lengths, optimizing insertion loss and ensuring superior performance. Available in vertical mount, edge mount, and right-angle configurations, CoreHC™ supports a broad performance range for both RF and Digital Applications.

Grid List
Filters
8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Female Jumper at 16 cm, TM7SSSH28R9FS016C

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Female Jumper at 16 cm

SKU: TM7SSSH28R9FS016C

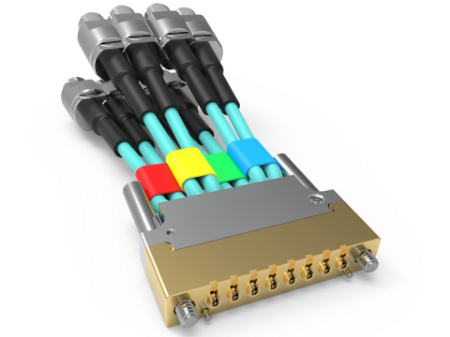

8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Female, 16cm Length, +/-2ps phase matched
8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Female Jumper at 31 cm, TM7SSSH28R9FS031C

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Female Jumper at 31 cm

SKU: TM7SSSH28R9FS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Female, 31cm Length, +/-2ps phase matched
8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 16 cm, TM7SSSH28R9MS016C

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 16 cm

SKU: TM7SSSH28R9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 31 cm, TM7SSSH28R9MS031C

8 Channel CoreHC HC2 Ganged Interconnect to 2.92mm Male Jumper at 31 cm

SKU: TM7SSSH28R9MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male Jumper at 16 cm

SKU: TM7SSH28S8MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, TM7SSH28S8MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male Jumper at 31 cm

SKU: TM7SSH28S8MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male Jumper at 16 cm

SKU: TM7SSH28S4MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male Jumper at 31 cm

SKU: TM7SSH28S4MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male Jumper at 16 cm

SKU: TM7SSH28S9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male Jumper at 31 cm

SKU: TM7SSH28S9MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male Jumper at 16 cm

SKU: TM7SSH28S5MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, TM7SSH28S5MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male Jumper at 31 cm

SKU: TM7SSH28S5MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 31cm Length, +/-2ps phase matched

Features and Benefits:

  • Performance: DC – 70Ghz | 56G PAM 4 | 112G PAM
  • Solderless and Repeatable: Ruggedized connector
    with 1000-cycle mate and de-mate repeatability
  • Density: 2.5mm signal-to-signal
  • Ease of Use: Quick attach of Multiple RF/Digital Signals
  • Cost Savings: Reusable across programs and field refurbishable

Applications:

  • Semiconductor Validation and Characterization
  • ATE and Production Test
  • Military and Aerospace
  • Quantum Computing



Performance & Specifications



Measurement Includes a 31cm .078” Ø CoreHC™ Assembly, 25.3 mm of CPW trace, and a 1.85mm Edge Launch</strong >





Resources

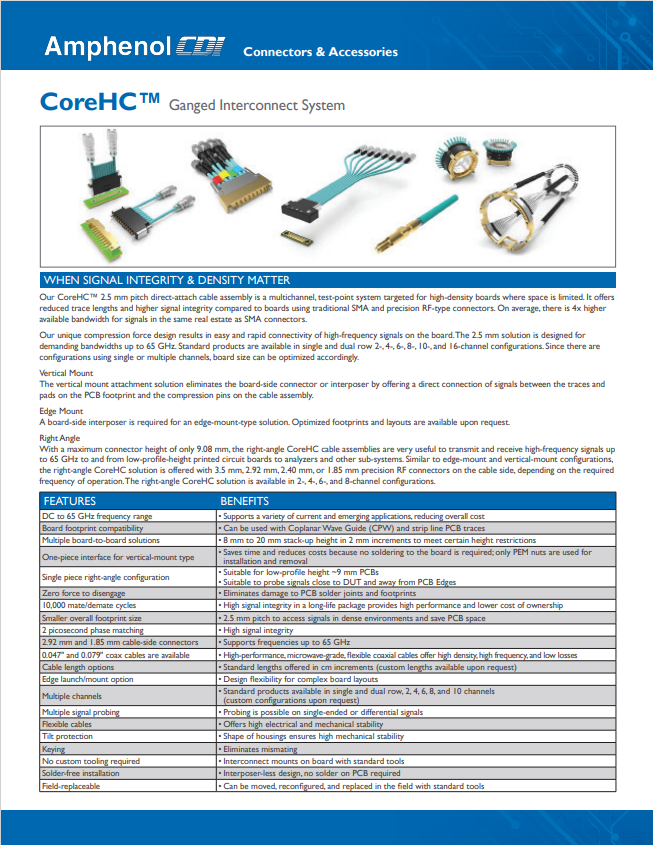

CoreHC™ DatasheetPCB Optimization ServicesProduct and Services Brochure
