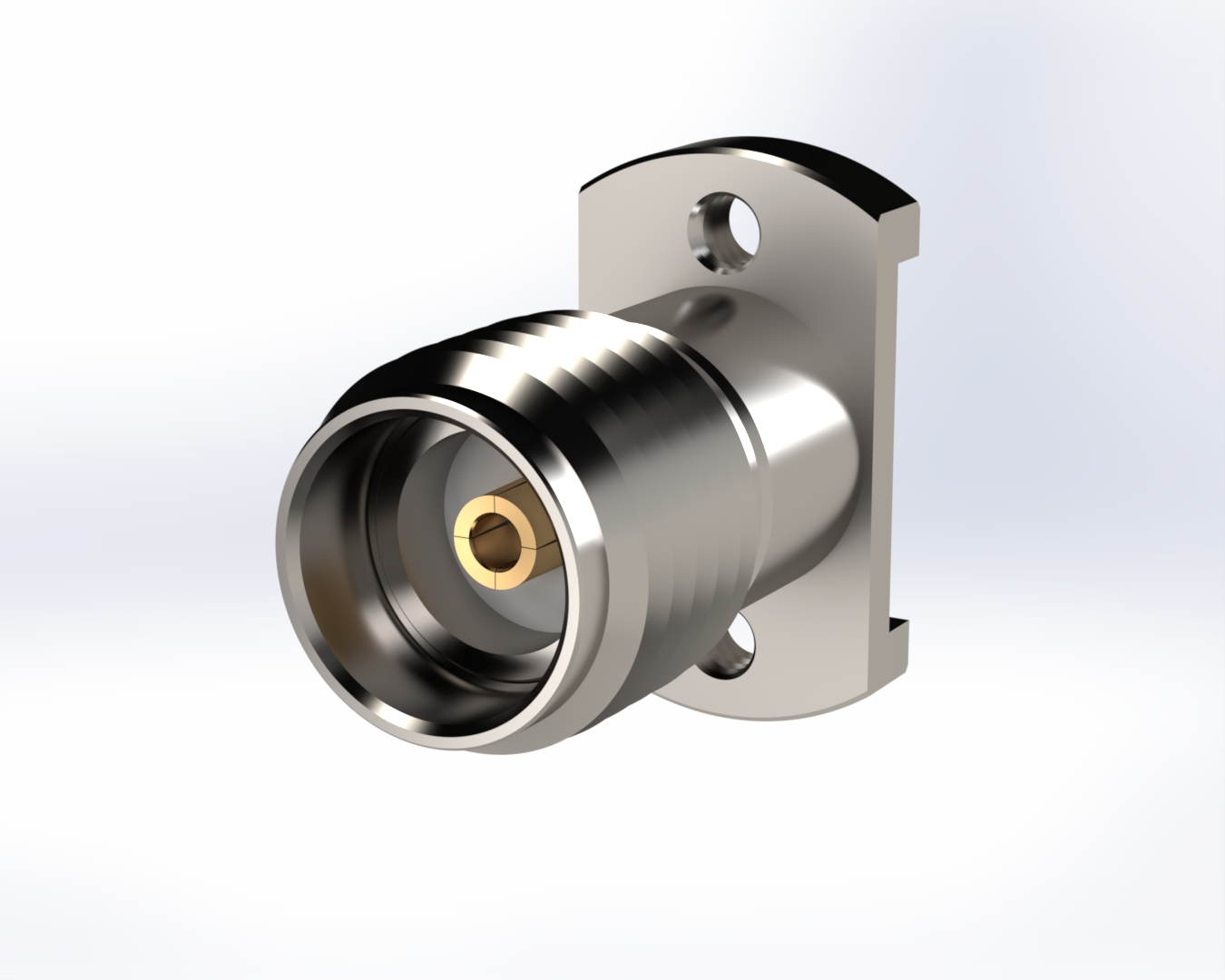

3.5mm Female 2 Hole Flange Post Contact

3.5mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole, Coplanar Waveguide
SKU: TMB-V5F2-3LC
3.5mm Female, Jack, Vertical Mount, Solderless PCB Compression Mount Connector, 2 hole, Coplanar Waveguide
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Coaxial Connector (RF)
Packaging Tray
Contact Termination Compression
Number of Ports 1
Housing Finish Passivated SST
RF Connector Specifications
Operating Temperature -65°C to +165°C
Impedance 50 ohms
Mounting Style Edge
Max Frequency 34 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
Insertion Loss 0.2 dB
Connector Series 3.5 mm
T & M Specifications
Connector Style 3.5 mm
Connector Type Jack, Female Socket
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Female
*
*
*
Products specifications
Attribute name Attribute value
Category Coaxial Connector (RF)
Packaging Tray
Contact Termination Compression
Number of Ports 1
Housing Finish Passivated SST
RF Connector Specifications
Operating Temperature -65°C to +165°C
Impedance 50 ohms
Mounting Style Edge
Max Frequency 34 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Voltage 500 Vrms max @ sea level
Mating Cycles 500 Cycles
Insertion Loss 0.2 dB
Connector Series 3.5 mm
T & M Specifications
Connector Style 3.5 mm
Connector Type Jack, Female Socket
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Female
