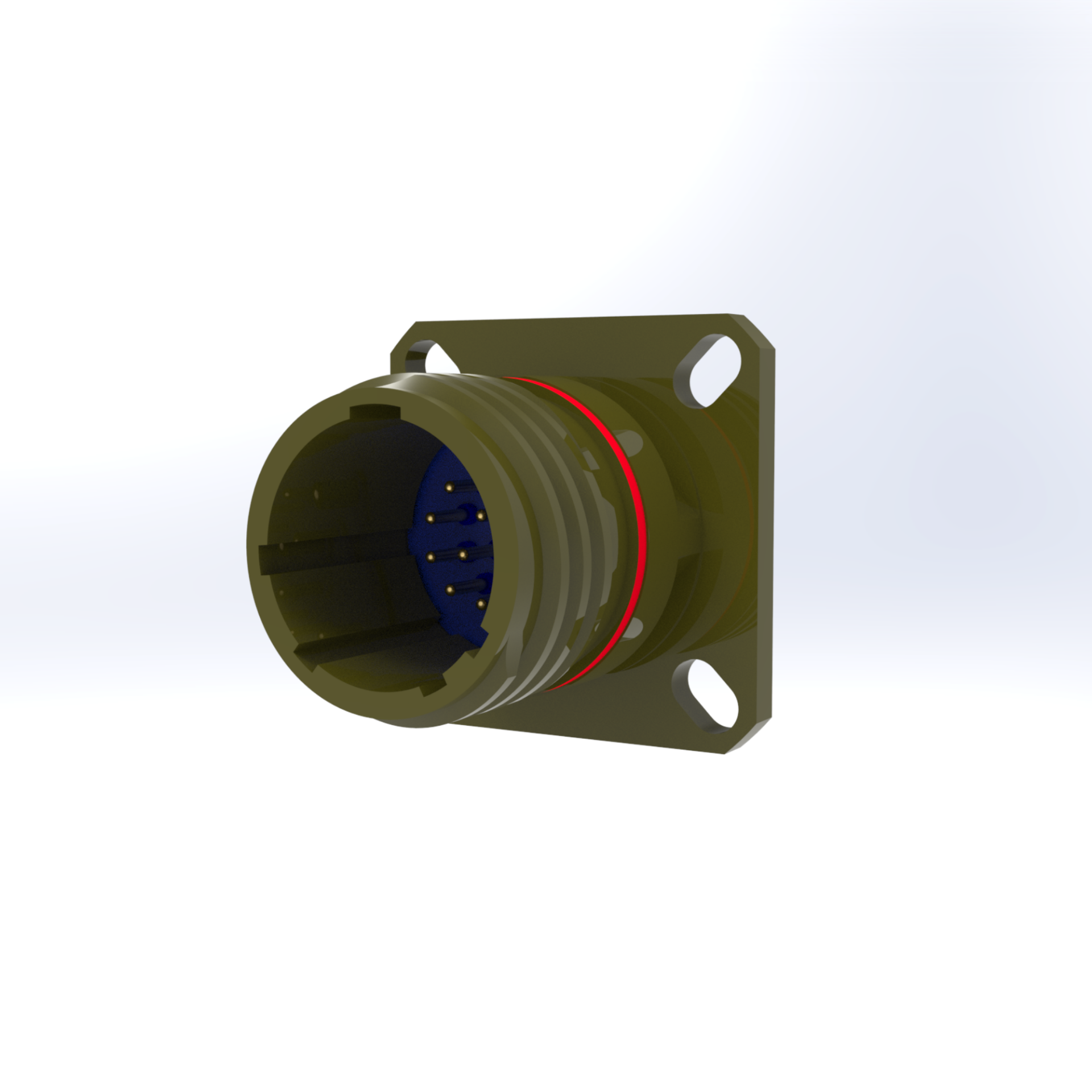

38999 Series 3 20 Pi Filter Connector (Receptacle), 11-35 PIN/Solder Cup "N" Polarization

Receptacle, 38999/20 11-35 PIN/SC PI-FILTER "N" PLZN
SKU: J993WSBO35APAN
Receptacle, 38999/20 11-35 PIN/SC PI-FILTER "N" PLZN
Distributor Quantity Buy
Contact Us
  • Self-locking Acme thread
  • One-turn coupling system
  • Scoop-proof design
  • Closed-entry socket inserts
  • Raised moisture barriers
  • Built for severe environments
  • Helps prevent cross-threading
  • Provides secure, reliable mating
  • Protects contacts during connection
  • Enhances environmental resistance
Products specifications
Attribute name Attribute value
Filtered Connectors
Shell Configurations MIL-DTL-38999
Series 3
Shell Style Wall Mount Receptacle (Series III, IV)
Termination Type Solder Termination
Shell Sizes 10/11
Shell Finish Olive Drab Cadmium Nickel (W)
Contact Arrangement 35
Filter Characteristics PL
Contact Type Pin
Polarization N
*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Filtered Connectors
Shell Configurations MIL-DTL-38999
Series 3
Shell Style Wall Mount Receptacle (Series III, IV)
Termination Type Solder Termination
Shell Sizes 10/11
Shell Finish Olive Drab Cadmium Nickel (W)
Contact Arrangement 35
Filter Characteristics PL
Contact Type Pin
Polarization N
