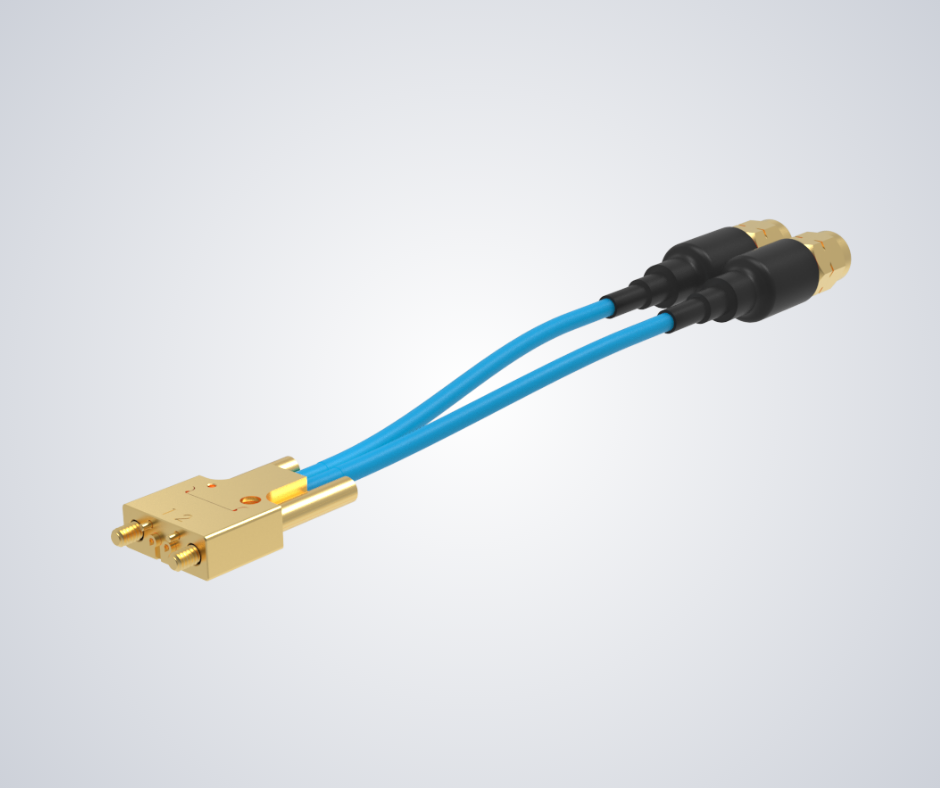

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 2CH to SMA(M), 31cm

2 Channel CoreCryo™ to SMA Male, 31cm
SKU: TM4CSSS2S2R2MS031C-U
2 Channel CoreCryo™ to SMA Male, 31cm
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Number of Ports 2
Housing Finish Gold
RF Connector Specifications
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 18 GHz
Center Contact Material BeCu
Body Material BeCu
Center Contact Plating Gold
Dielectric Material PTFE
Voltage 325 Vrms
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series CoreCryo™
Connector Style CoreCryo
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Male to Male
*
*
*
