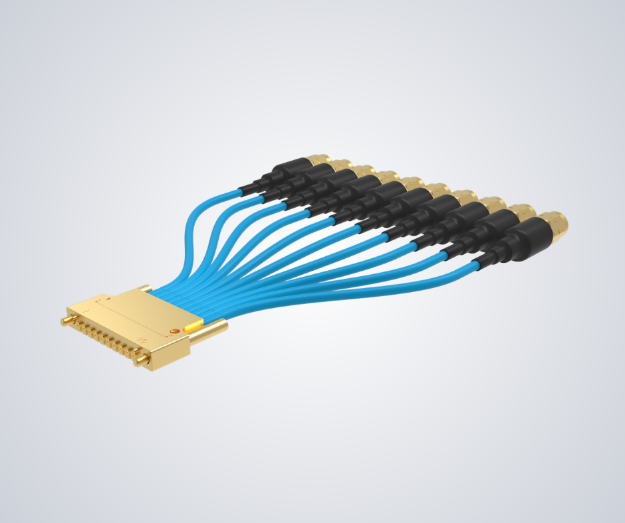

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 10CH to SMA(M), 31cm

10 Channel CoreCryo™ to SMA Male, 31cm
SKU: TM4CSSS2S10R2MS031C-U
10 Channel CoreCryo™ to SMA Male, 31cm
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Number of Ports 10
Housing Finish Gold
RF Connector Specifications
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 18 GHz
Center Contact Material BeCu
Body Material BeCu
Center Contact Plating Gold
Dielectric Material PTFE
Voltage 325 Vrms
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series CoreCryo™
Connector Style CoreCryo
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Male to Male
*
*
*
