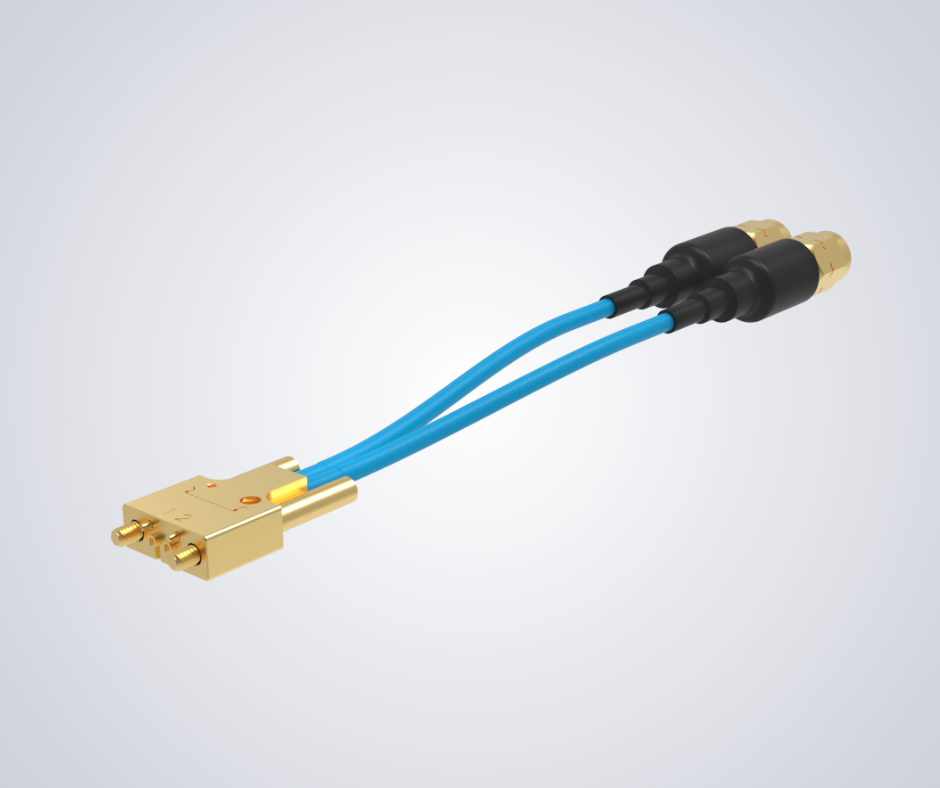

CoreCryo 047 Non-Magnetic Ganged Assembly, 1xRow HC STRIPLINE 2CH to SMA Male, 31cm

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 2CH to SMA(M), 31cm
SKU: TM4CSSS22R2MS031C-U
CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 2CH to SMA(M), 31cm
Distributor Quantity Buy
Contact Us
  • 20 GHz, 56G PAM4 support
  • Rugged connector, 1,000-cycle durability
  • 2.5 mm signal-to-signal density
  • Quick attach for RF/Digital connections
  • Reusable, field-replaceable
  • Non-magnetic materials, defined specs
  • High-speed data transfer
  • Reliable in harsh environments
  • Space-saving compact design
  • Fast, flexible installation
  • Quantum-ready for cryogenic environments
  • Simplifies mixed-signal integration
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 18 GHz
Number of Ports 2
Housing Finish Gold
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging
Center Contact Material BeCu
Body Material BeCu
Center Contact Plating Gold
Voltage 325 Vrms
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
Features Field Replaceable, Compliant Mount to PCB
*
*
*
*
*
*
*
*
