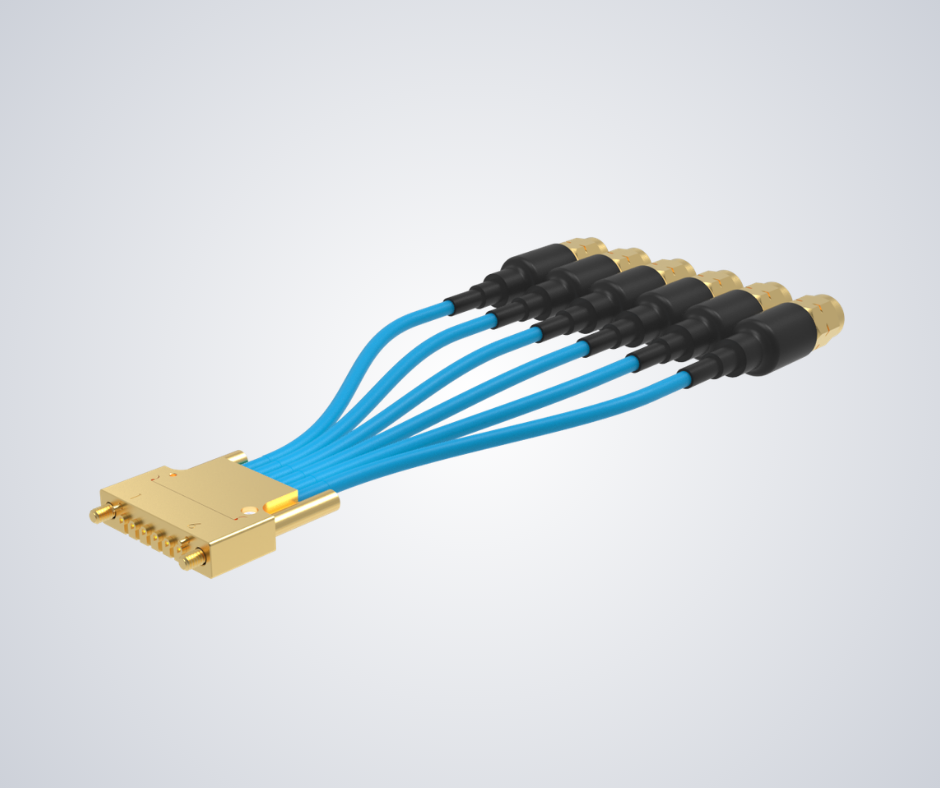

CoreCryo 047 Non-Magnetic Ganged Assembly, 1xRow HC STRIPLINE 6CH to SMA Male, 31cm

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 6CH to SMA(M), 31cm
SKU: TM4CSSS26R2MS031C-U
CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 6CH to SMA(M), 31cm
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 18 GHz
Number of Ports 6
Housing Finish Gold
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material BeCu
Center Contact Plating Gold
Voltage 325 Vrms
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
