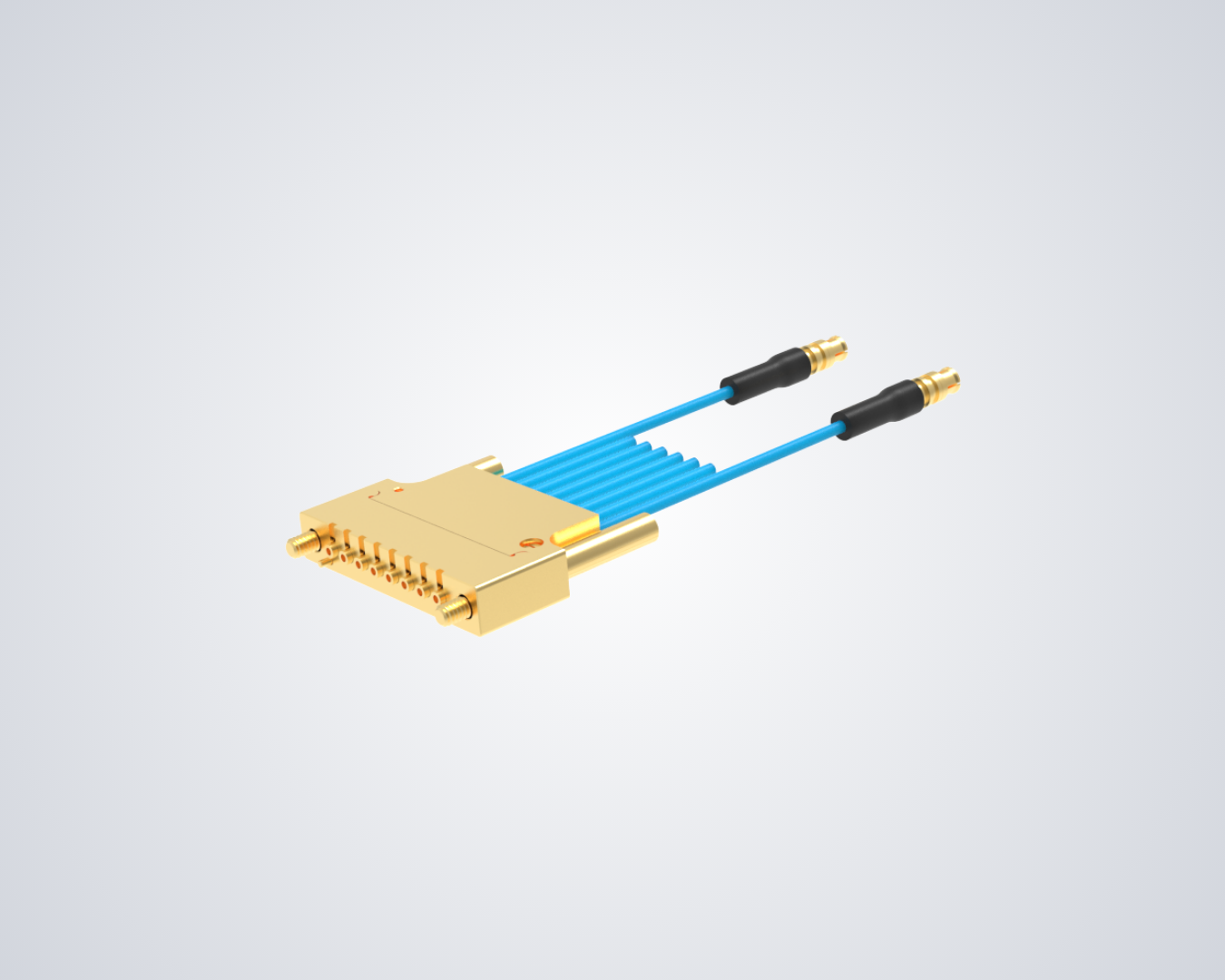

CoreCryo 047 Non-Magnetic Ganged Assembly, 1x8 SL to SMP Female, 031cm

Core NM Assy, 1x8 SL to SMP(F), 031cm
SKU: TM4CSSS28RPFS031C
Core NM Assy, 1x8 SL to SMP(F), 031cm
Distributor Quantity Buy
Contact Us
+ -
  • 20 GHz, 56G PAM4 support
  • Rugged connector, 1,000-cycle durability
  • 2.5 mm signal-to-signal density
  • Quick attach for RF/Digital connections
  • Reusable, field-replaceable
  • Non-magnetic materials, defined specs
  • High-speed data transfer
  • Reliable in harsh environments
  • Space-saving compact design
  • Fast, flexible installation
  • Quantum-ready for cryogenic environments
  • Simplifies mixed-signal integration
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 20 GHz
Number of Ports 8
Housing Finish Gold over Copper Plating
Dielectric Material PTFE
Insertion Loss -3.0 @ 14 to 20 Ghz
Operating Temperature Cyrogenic Temperatures
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging
Center Contact Material BeCu Alloy
Body Material BeCu Alloy
Center Contact Plating Gold over Copper Plating
Voltage 335 Vrms max
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
RF Products
Cable .047 Non Magnetic Cable
*
*
*
*
*
*
*
*
