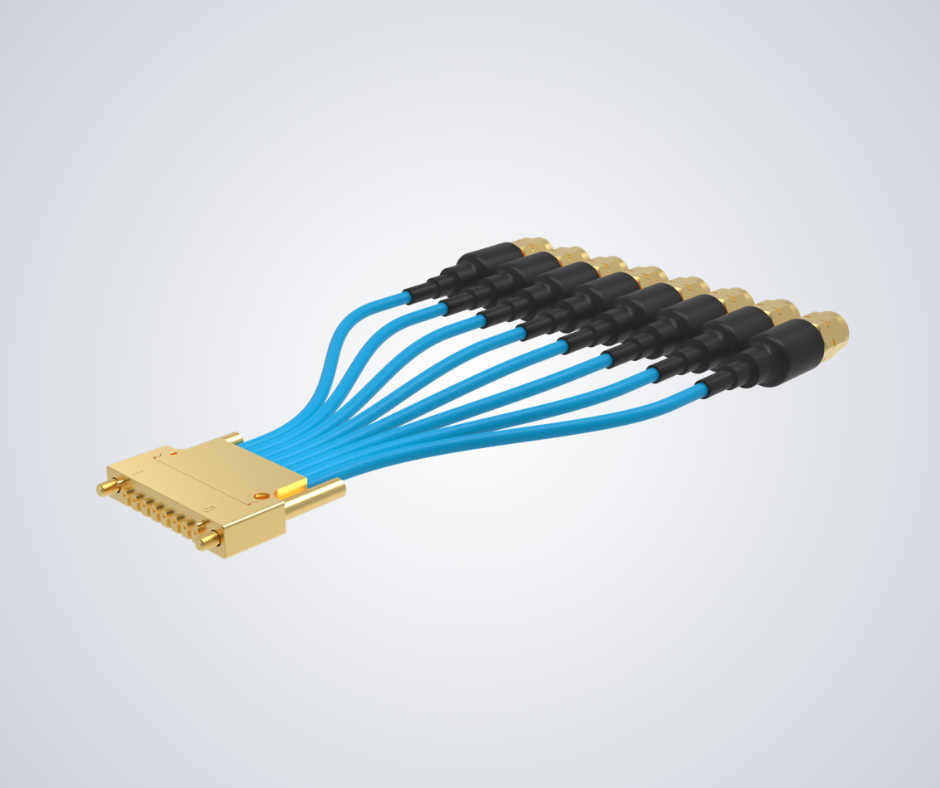

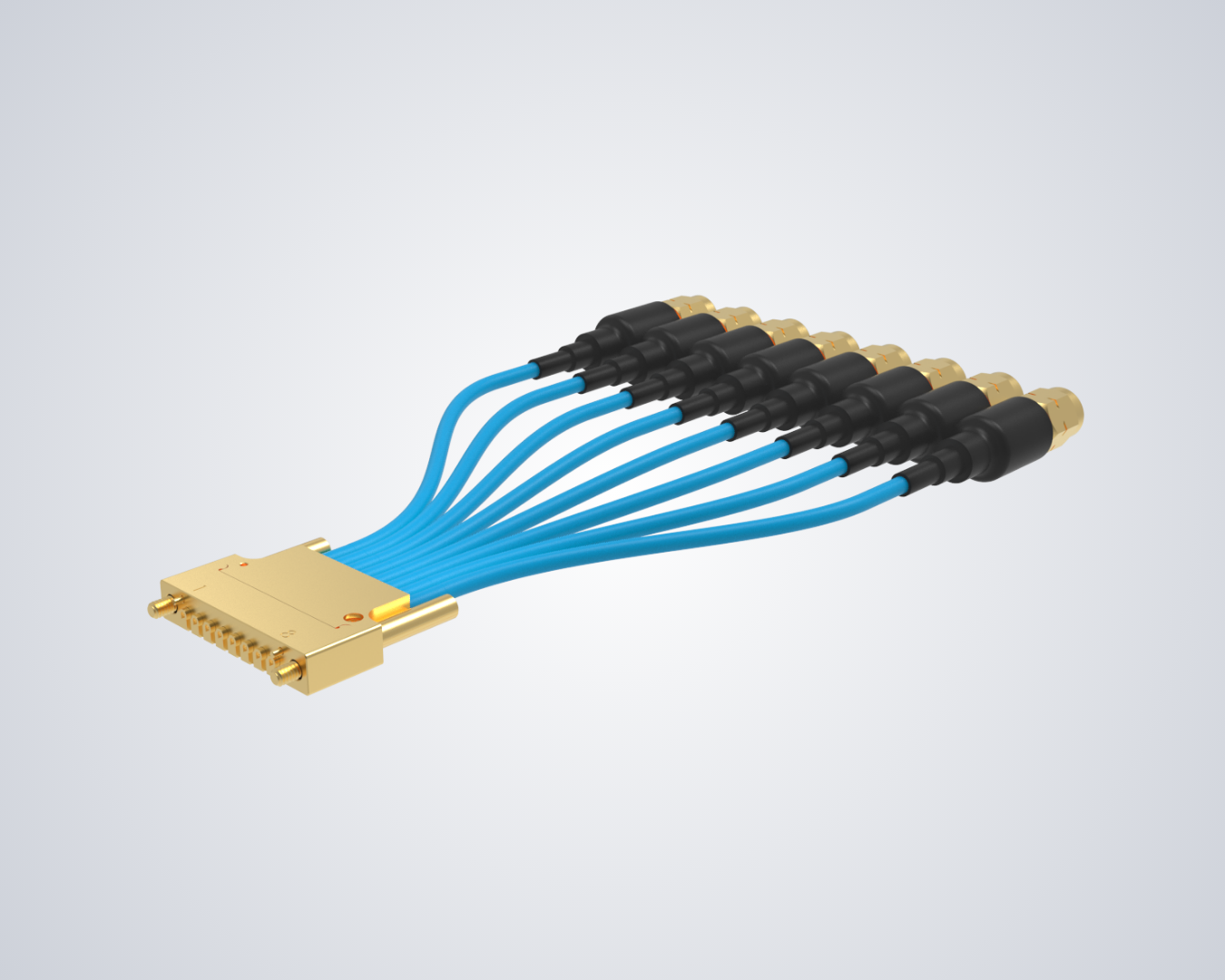

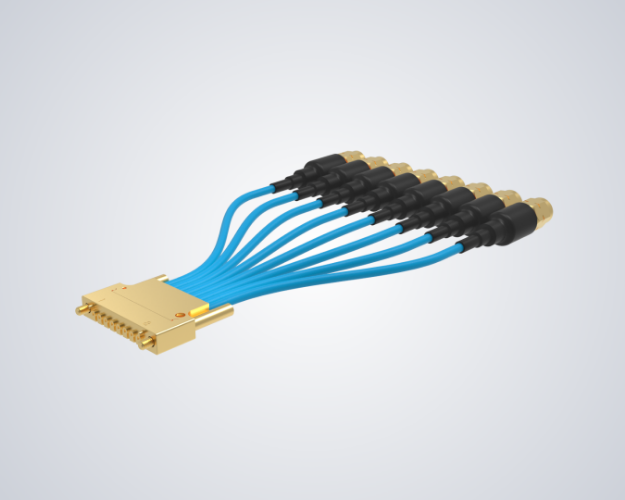

CoreCryo 047 Non-Magnetic Assembly, 1xRow HC STRIPLINE 8CH to SMA Male, 31cm

SKU: TM4CSSS28R2MS031C

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 8CH to SMA(M), 31cm

Distributor	Quantity	Buy

Qty:

+ -

Products specifications

Attribute name	Attribute value
Category	CoreCryo Cable Assemblies
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	18 GHz
Number of Ports	8
Housing Finish	Gold
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Male
RF Series	CoreCryo
RF Series 2	SMA
RF Connector Specifications
Mounting Style	Free Hanging (In-Line)
Center Contact Material	BeCu
Body Material	BeCu
Center Contact Plating	Gold
Voltage	325 Vrms
Mating Cycles	1000 cycles min
T & M Specifications
Series	CoreCryo™
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replaceable, Compliant Mount to PCB
