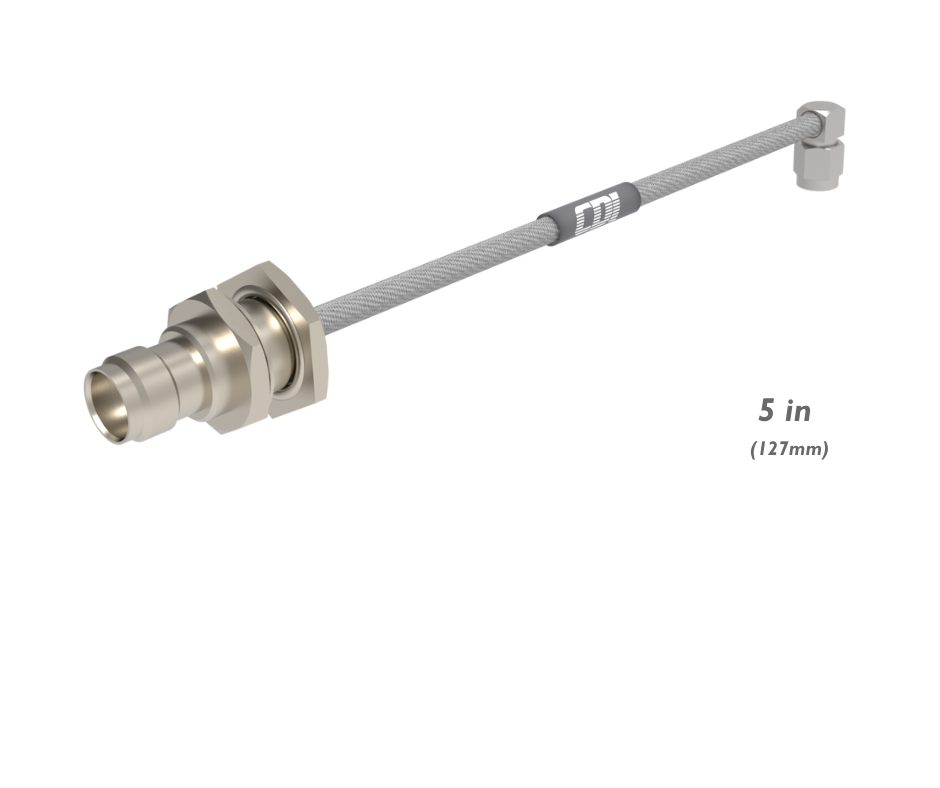

Semi Flex 0.141" cable, TNC Female BHD to SMA Male Right Angle, 5"

SEMI FLEX(R) TNC(F) BHD TO SMA(M) R/A ON 601, 5"
SKU: 134376013205
SEMI FLEX(R) TNC(F) BHD TO SMA(M) R/A ON 601, 5"
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
Impedance 50 ohms
Dielectric Material PTFE, PTFE
Frequency 18 GHz
Gender Female
Gender 2 Male
Body Orientation Straight
Body Orientation 2 Right Angle
RF Series TNC
RF Series 2 SMA
Insertion Loss 0.86
RF Connector Specifications
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 500 Cycles
Mounting Style Bulkhead
T & M Specifications
Series TNC - SMA
Shield Termination Solder
Fastening Type Threaded
*
*
*
