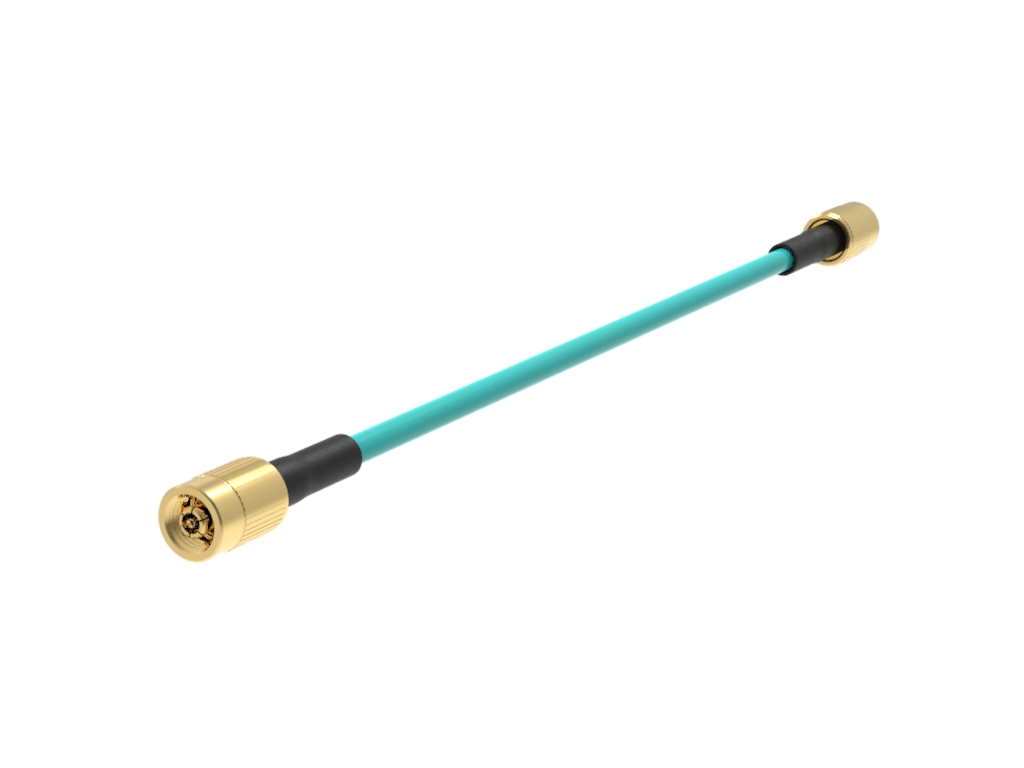

SMPM SecureThread™ to SMPM SecureThread™ RF Assembly at 31 cm

0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to SMPM SecureThread™ Connector, 31 cm in length
SKU: TM7SMSTSSTS0031C
0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to SMPM SecureThread™ Connector, 31 cm in length
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 40 GHz
Number of Ports 2
Housing Finish Passivated SST, Gold
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Female
RF Series SMPM
RF Series 2 SMPM
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Center Contact Plating Gold
Mating Cycles 250 cycles min
Connector Series SMPM
T & M Specifications
Series Secure Thread
Shield Termination Threaded
Fastening Type Threaded
*
*
*
