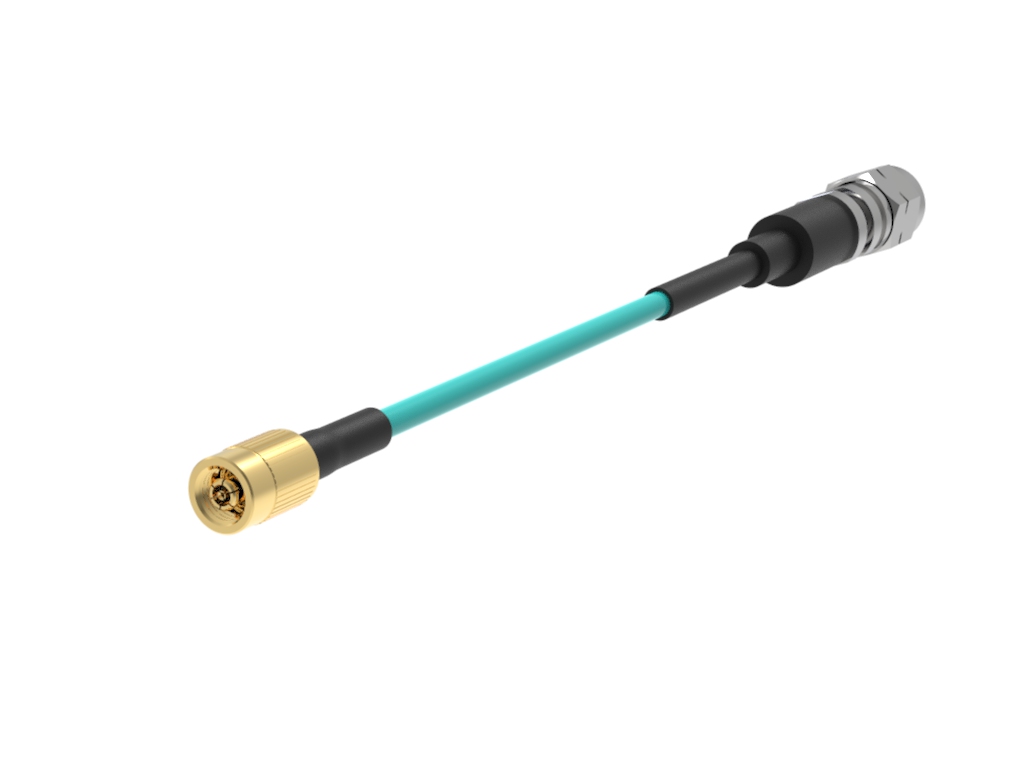

SMPM SecureThread™ to 3.5mm Male RF Assembly at 31 cm

0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to Straight Mount 3.5mm Male Connector, 31 cm in length
Distributor Quantity Buy
SKU: TM7SMSTS5MS0031C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Passivated SST, Gold
RF Connector Specifications
Gender Male to Female
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 26.5 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 250 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series Secure Thread
Connector Style SSMP ST to 3.5 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features N/A
*
*
*
