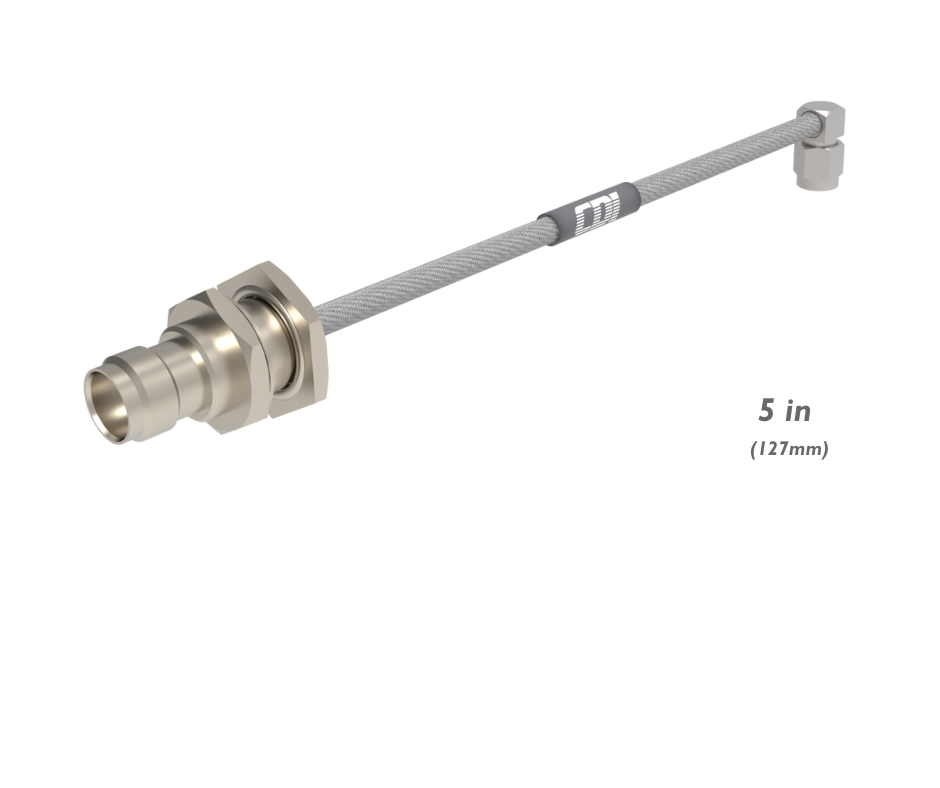

SEMI FLEX(R) TNC(F) BHD TO SMA(M) R/A ON 601, 5"

SKU: 134376013205
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Solder
Number of Ports 2
Housing Finish Passivated SST
RF Connector Specifications
Impedance 50 ohms
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Mating Cycles 500 Cycles
Max Frequency 18 GHz
Mounting Style Bulkhead
T & M Specifications
Series TNC - SMA
Connector Style Straight to Right Angle
Shield Termination Solder
Fastening Type Threaded
RF Products
Gender Female to Male
*
*
*
