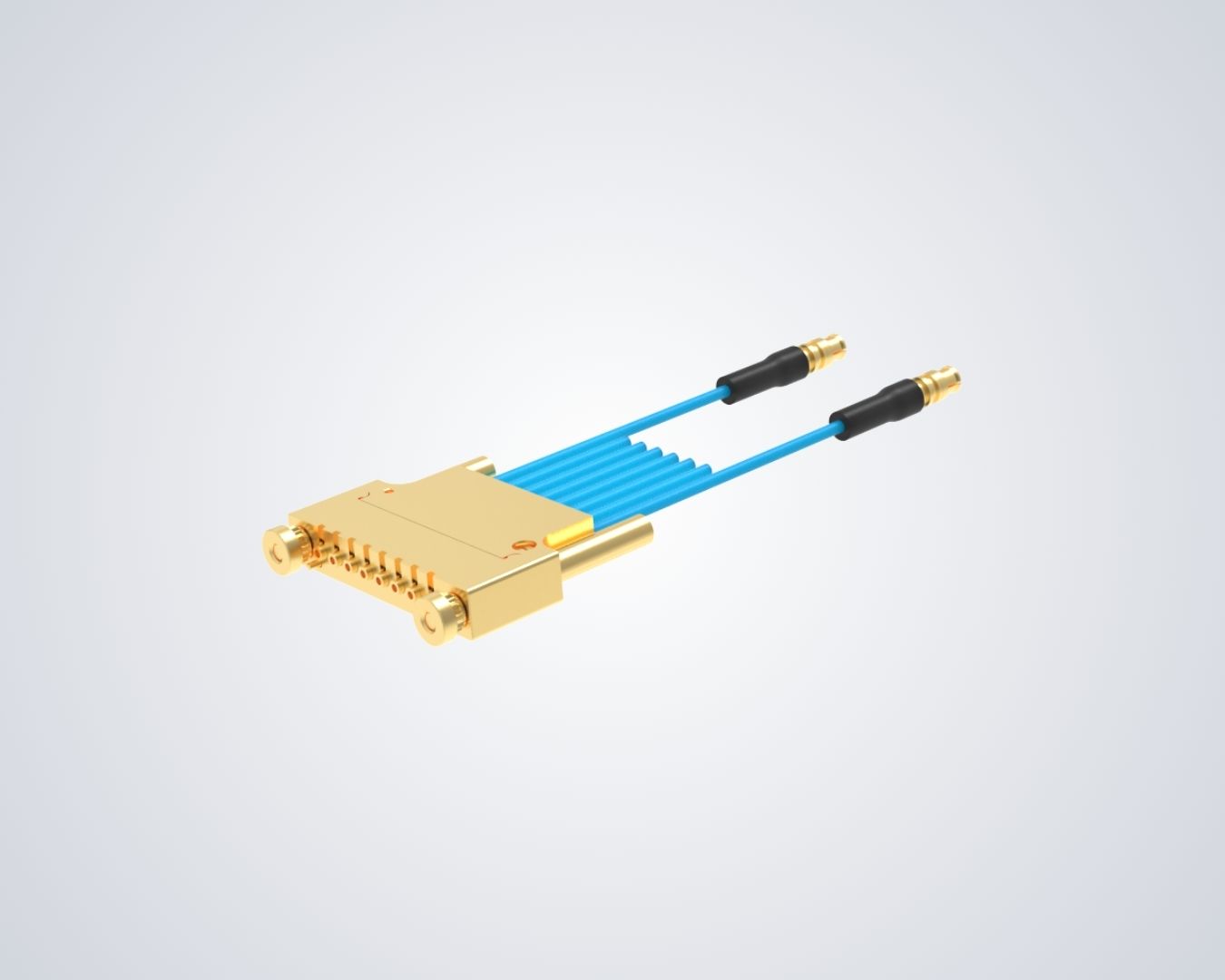

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 8CH to SMP(F), 31cm

CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 8CH to SMP(F), 31cm , TM4CSSS28RPFS031C
SKU: TM4CSSS28RPFS031C
CoreCryo 047 NM Assy, 1xRow HC STRIPLINE 8CH to SMP(F), 31cm , TM4CSSS28RPFS031C
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 20 GHz
Number of Ports 8
Housing Finish Gold over Copper Plating
Dielectric Material PTFE
Insertion Loss -3.0 @ 14 to 20 Ghz
Operating Temperature Cyrogenic Temperatures
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu Alloy
Body Material BeCu Alloy
Center Contact Plating Gold over Copper Plating
Voltage 335 Vrms max
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
RF Products
Cable .047 Non Magnetic Cable
*
*
*
