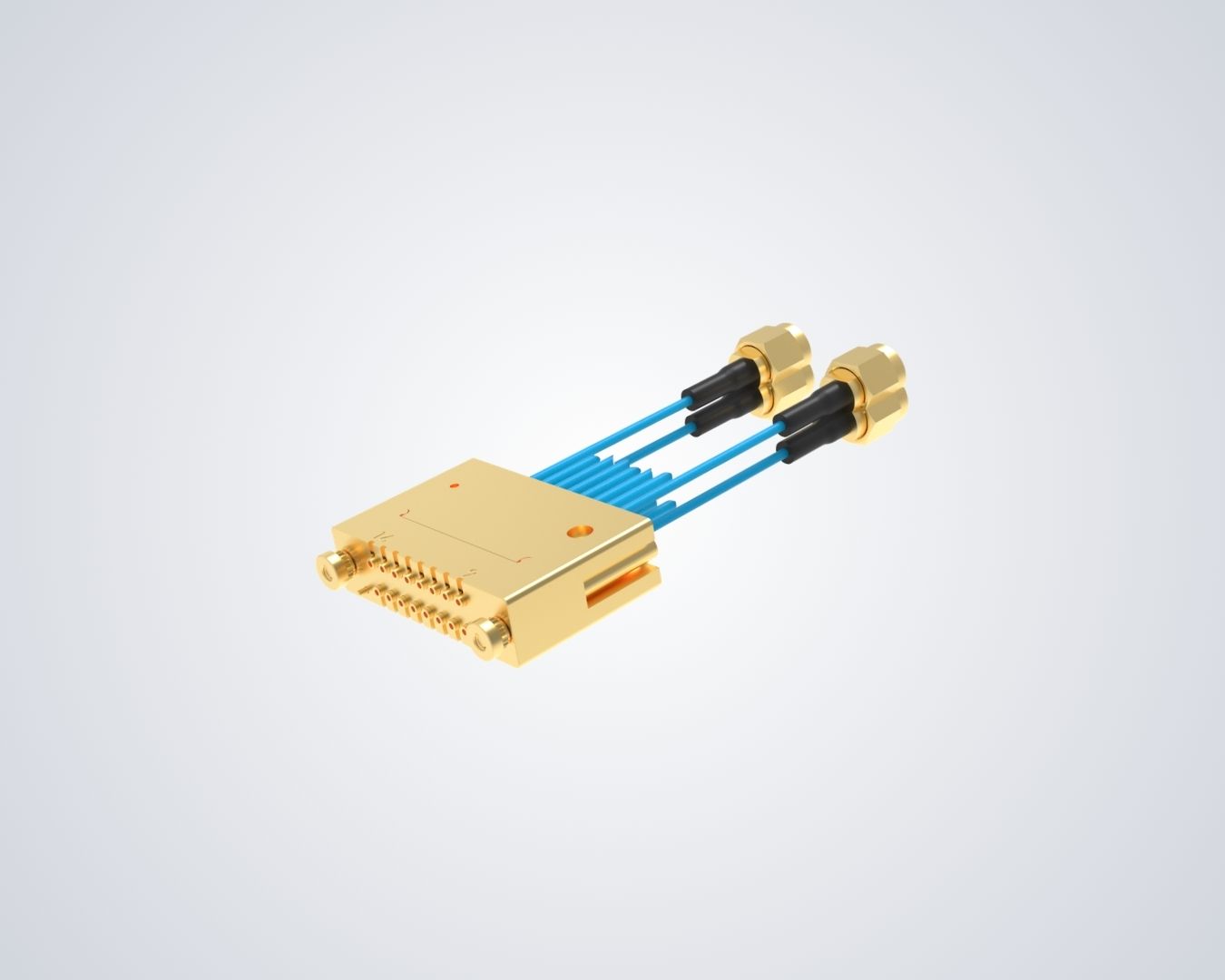

CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMA(M), 31cm

CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMA(M), 31cm, TM4CSDS28R2MS031C
SKU: TM4CSDS28R2MS031C
CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMA(M), 31cm, TM4CSDS28R2MS031C
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Number of Ports 16
Housing Finish Gold over Copper Plating
RF Connector Specifications
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 20 GHz
Center Contact Material BeCu Alloy
Body Material BeCu Alloy
Center Contact Plating Gold over Copper Plating
Dielectric Material PTFE
Voltage 335 Vrms max
Mating Cycles 1000 cycles min
Insertion Loss -3.0 @ 14 to 20 Ghz
Operating Temperature Cyrogenic Temperatures
T & M Specifications
Series CoreCryo™
Connector Style SMA
Shield Termination Threaded
Fastening Type Threaded
RF Products
Cable .047 Non Magnetic Cable
Gender Male
*
*
*
