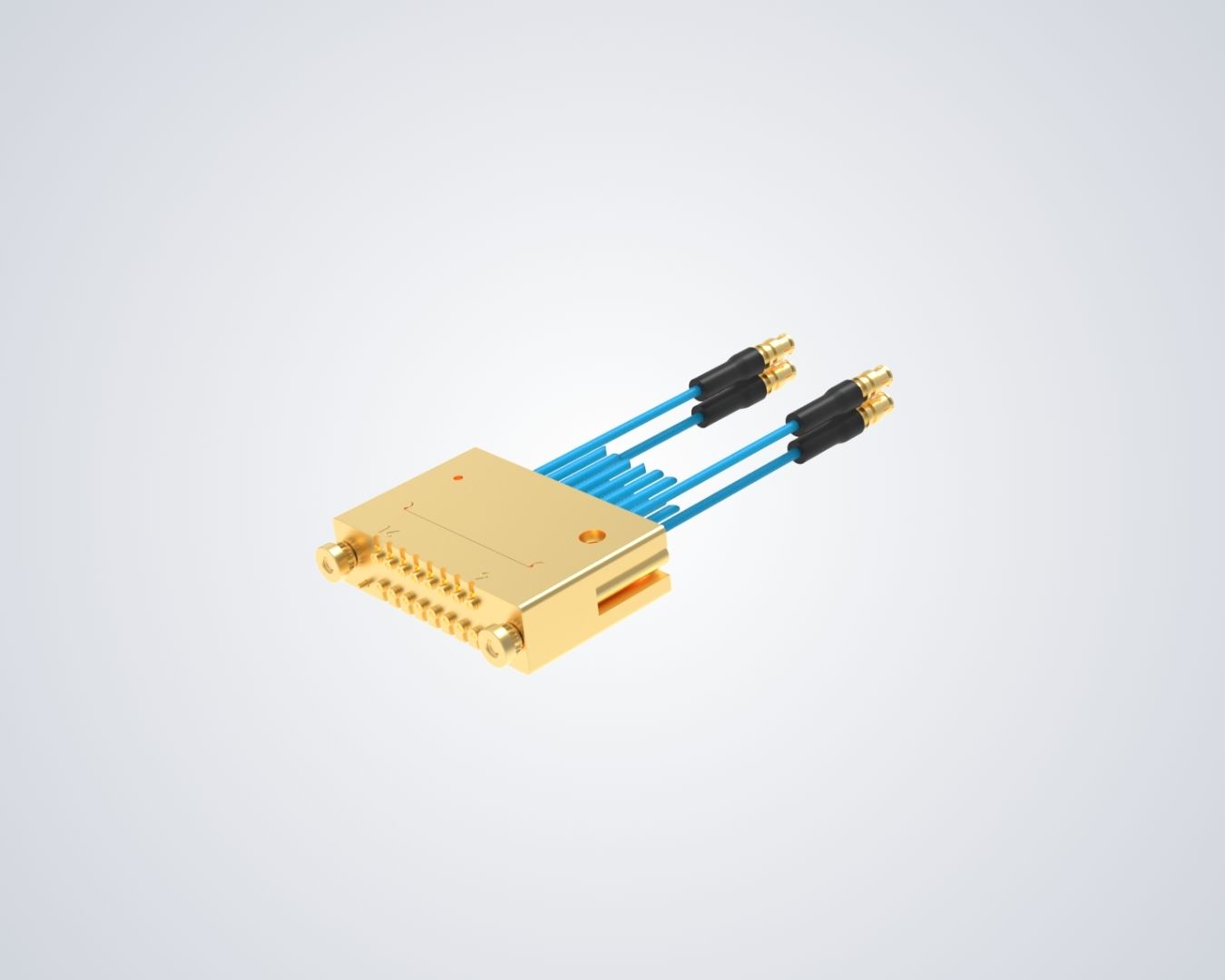

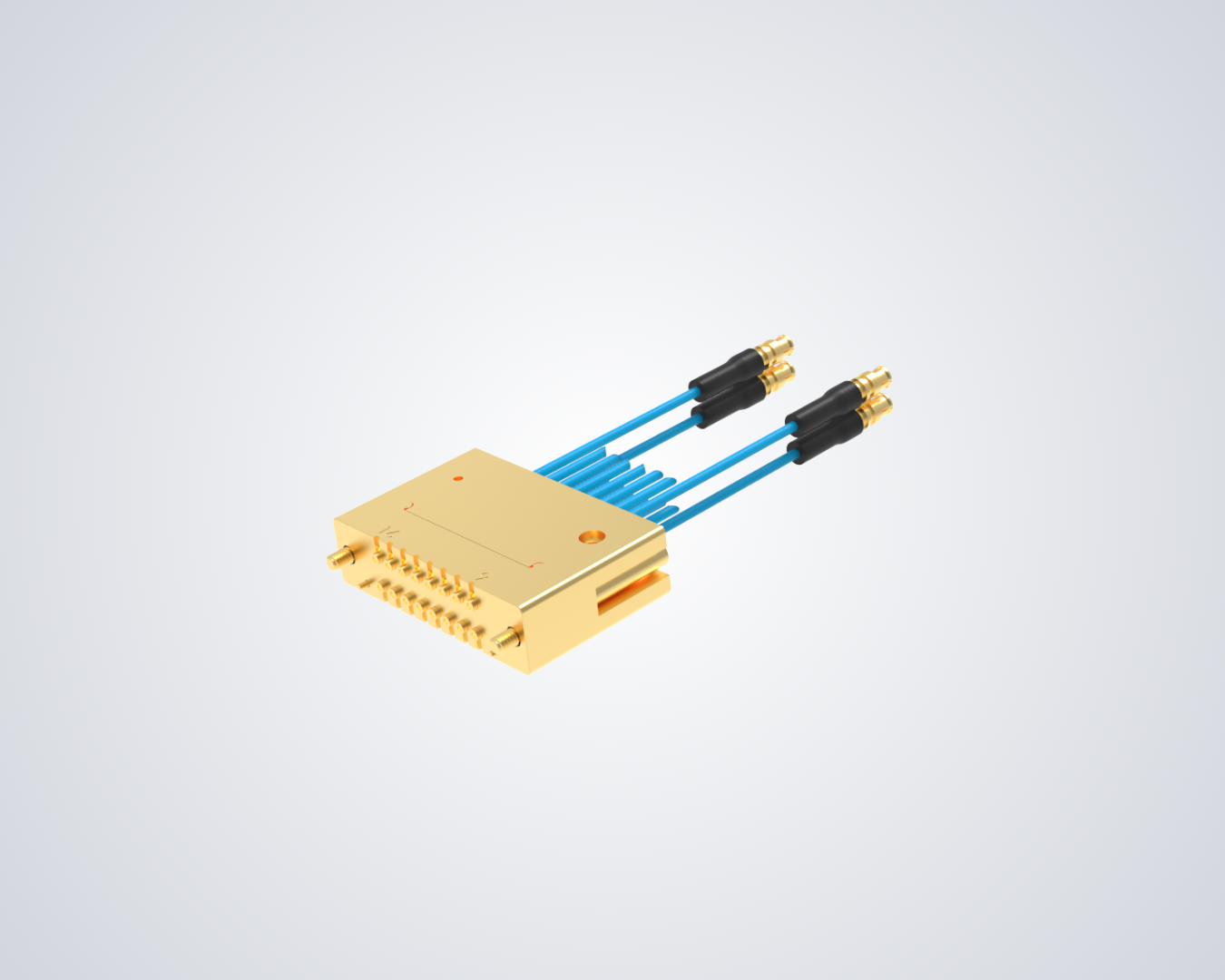

CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMP(F), 31cm

CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMP(F), 31cm, TM4CSDS28RPFS031C
SKU: TM4CSDS28RPFS031C
CoreCryo 047 NM Assy, 2xRow HC STRIPLINE 16CH to SMP(F), 31cm, TM4CSDS28RPFS031C
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 20 GHz
Number of Ports 16
Housing Finish Gold over Copper Plating
Dielectric Material PTFE
Insertion Loss -3.0 @ 14 to 20 Ghz
Operating Temperature Cyrogenic Temperatures
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu Alloy
Body Material BeCu Alloy
Center Contact Plating Gold over Copper Plating
Voltage 335 Vrms max
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
RF Products
Cable .047 Non Magnetic Cable
*
*
*
Products specifications
Attribute name Attribute value
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 20 GHz
Number of Ports 16
Housing Finish Gold over Copper Plating
Dielectric Material PTFE
Insertion Loss -3.0 @ 14 to 20 Ghz
Operating Temperature Cyrogenic Temperatures
Gender Male
RF Series CoreCryo
RF Series 2 SMA
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu Alloy
Body Material BeCu Alloy
Center Contact Plating Gold over Copper Plating
Voltage 335 Vrms max
Mating Cycles 1000 cycles min
T & M Specifications
Series CoreCryo™
Shield Termination Threaded
Fastening Type Threaded
RF Products
Cable .047 Non Magnetic Cable
