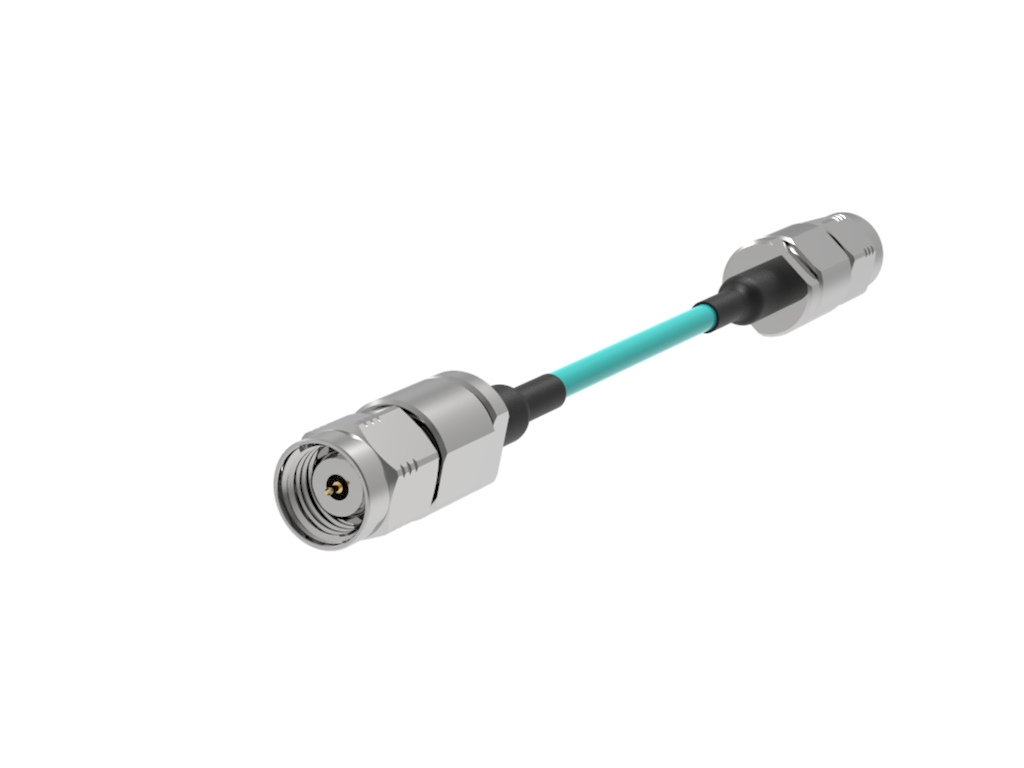

2.4mm Male to 2.4mm Male RF Assembly at 31 cm

0.079" cable diameter, Straight mount 2.4mm Male Connector to Straight Mount 2.4mm Male Connector, 31 cm in length,
Distributor Quantity Buy
SKU: TM7SM4MS4MS0031C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Housing Finish Gold
Number of Ports 2
RF Connector Specifications
Impedance 50 ohms
Gender Male to Male
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
Connector Style 2.4 mm to 2.4 mm
Series 2.4 mm
*
*
*
