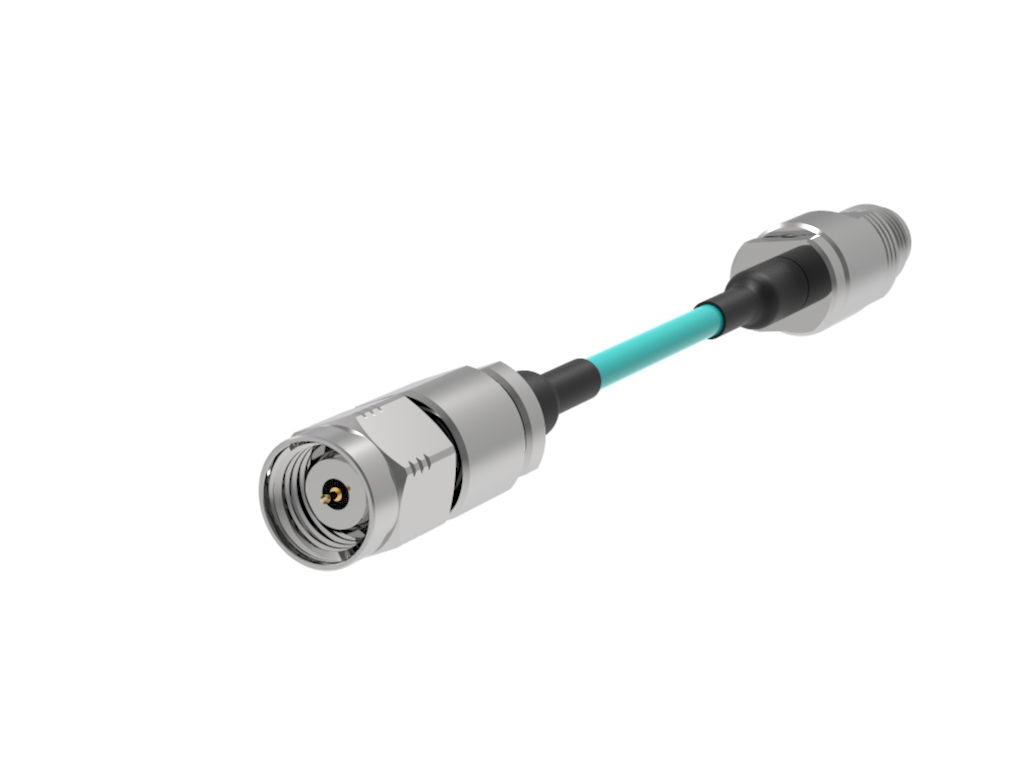

3.5mm Male to 3.5mm Male RF Assembly at 92 cm

SKU: TM7SM5MS5MS0092C

0.079" cable diameter, Straight mount 3.5mm Male Connector to Straight Mount 3.5mm Male Connector, 92 cm in length.

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag
Contact Termination	Compression
Number of Ports	2
Housing Finish	Passivated SST
RF Connector Specifications
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	26.5 GHz
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	N/A
Mating Cycles	1000 cycles min
Insertion Loss	N/A
Operating Temperature	-65°C to +125°C
T & M Specifications
Series	3.5 mm
Connector Style	3.5 mm to 3.5 mm
Connector Type	N/A
Shield Termination	Threaded
Fastening Type	Threaded
Features	N/A
RF Products
Gender	Male to Male
