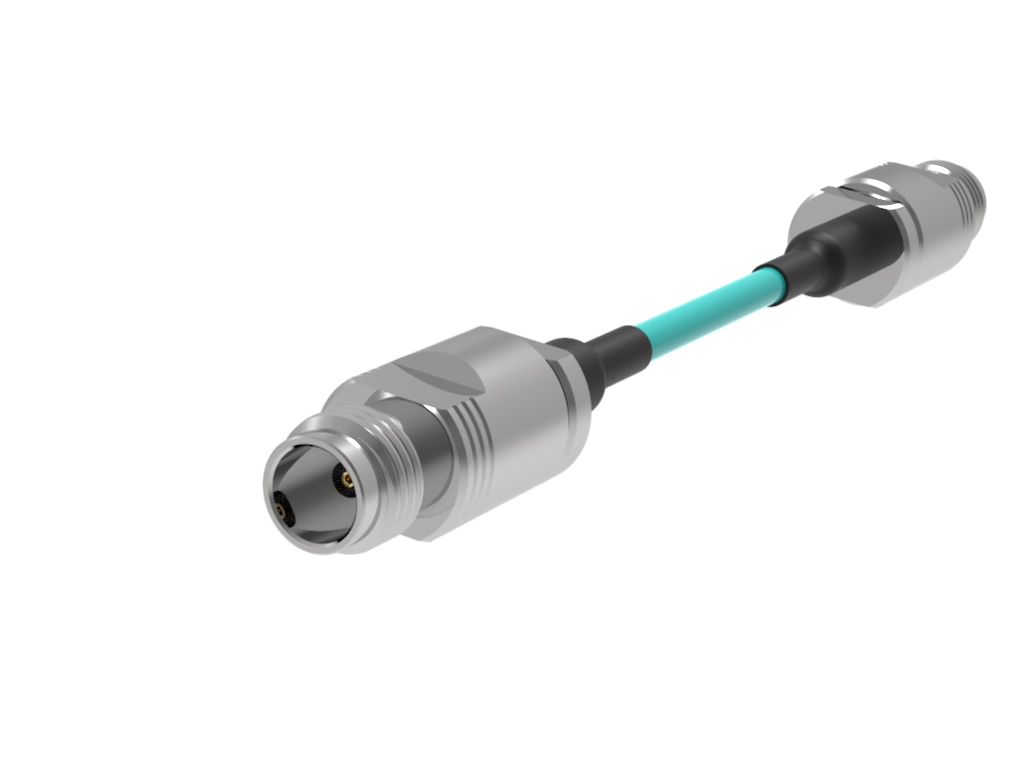

1.85mm Female to 1.85mm Female RF Jumper at 92 cm

SKU: TM7SM8FS8FS0031C

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	67 GHz
Number of Ports	2
Housing Finish	Passivated SST
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Female
Body Orientation	Straight
RF Series	1.85 mm
RF Connector Specifications
Mounting Style	Free Hanging
Center Contact Material	BeCu
Body Material	SST
Center Contact Plating	Gold
Mating Cycles	1000 cycles min
T & M Specifications
Series	1.85 mm
Shield Termination	Threaded
Fastening Type	Threaded
