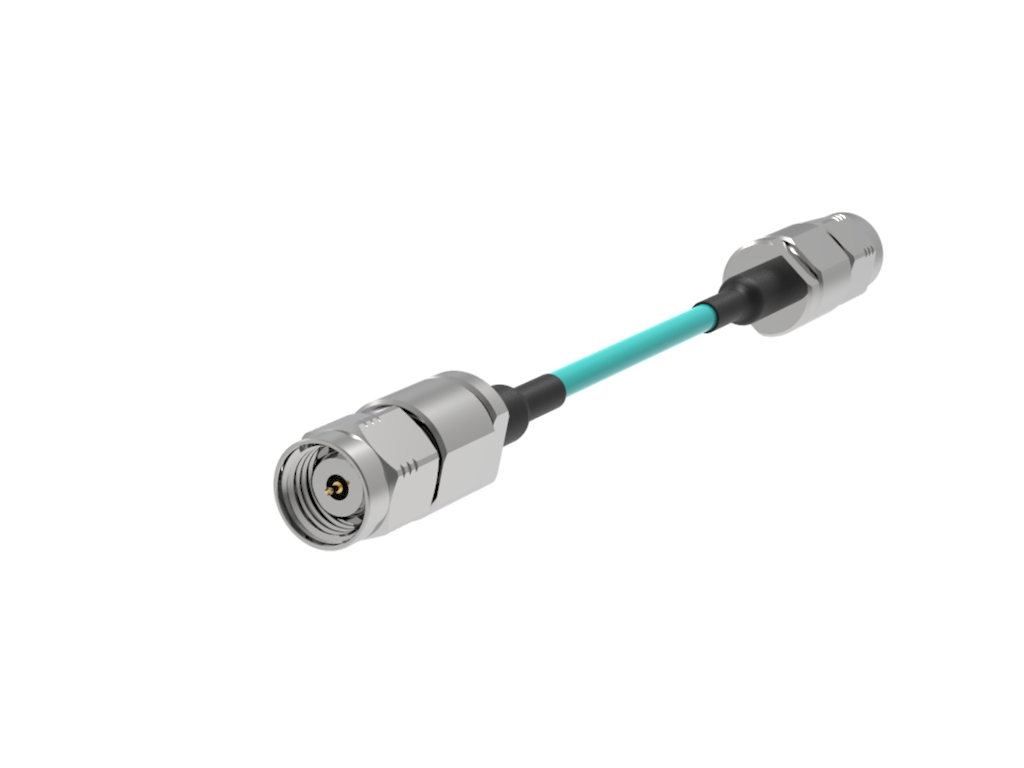

1.85mm Male to 1.85mm Male RF Assembly at 61 cm

0.079" cable diameter, Straight mount 1.85mm Male Connector to Straight Mount 1.85mm Male Connector, 61 cm in length
Distributor Quantity Buy
SKU: TM7SM8MS8MS0061C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Passivated SST
RF Connector Specifications
Gender Male to Male
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 67 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series 1.85 mm
Connector Style 1.85 mm to 1.85 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features N/A
*
*
*
