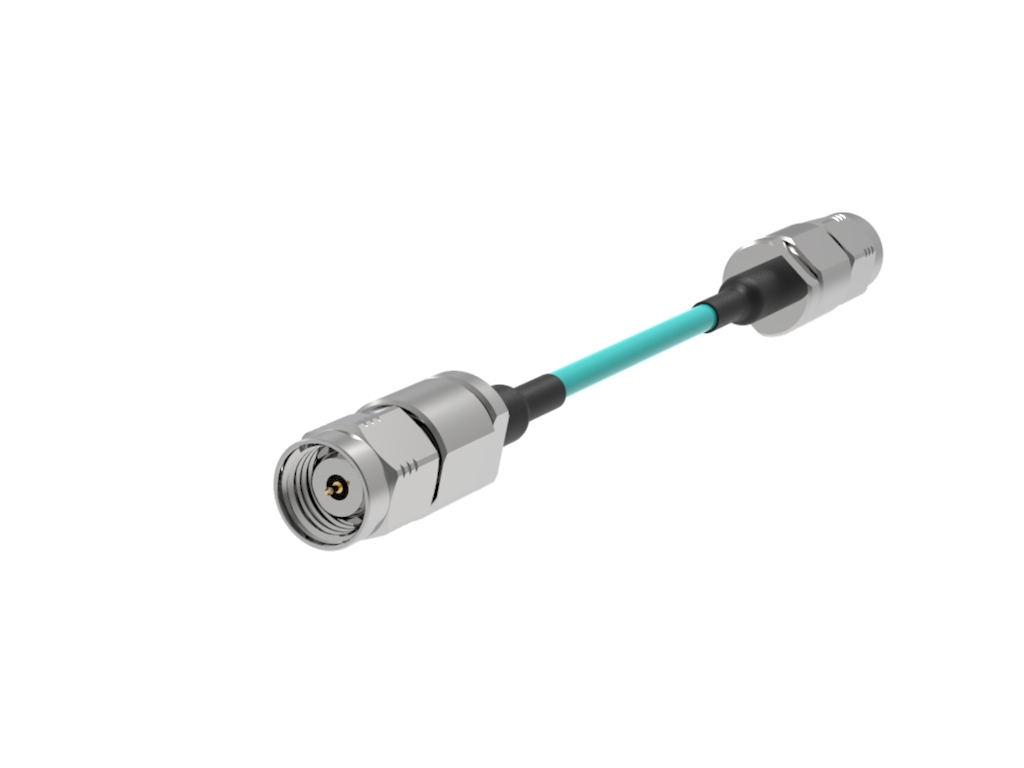

1.85mm Male to 1.85mm Male RF Assembly at 92 cm

0.079" cable diameter, Straight mount 1.85 mm Male Connector to Straight Mount 1.85mm Male Connector, 92 cm in length
SKU: TM7SM8MS8MS0092C
0.079" cable diameter, Straight mount 1.85 mm Male Connector to Straight Mount 1.85mm Male Connector, 92 cm in length
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Impedance 50 ohms
Frequency 67 GHz
Number of Ports 2
Housing Finish Passivated SST
Dielectric Material PTFE
Operating Temperature -65°C to +125°C
Gender Male
Body Orientation Straight
RF Series 1.85 mm
RF Connector Specifications
Mounting Style Free Hanging (In-Line)
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Mating Cycles 1000 cycles min
T & M Specifications
Series 1.85 mm
Shield Termination Threaded
Fastening Type Threaded
*
*
*
