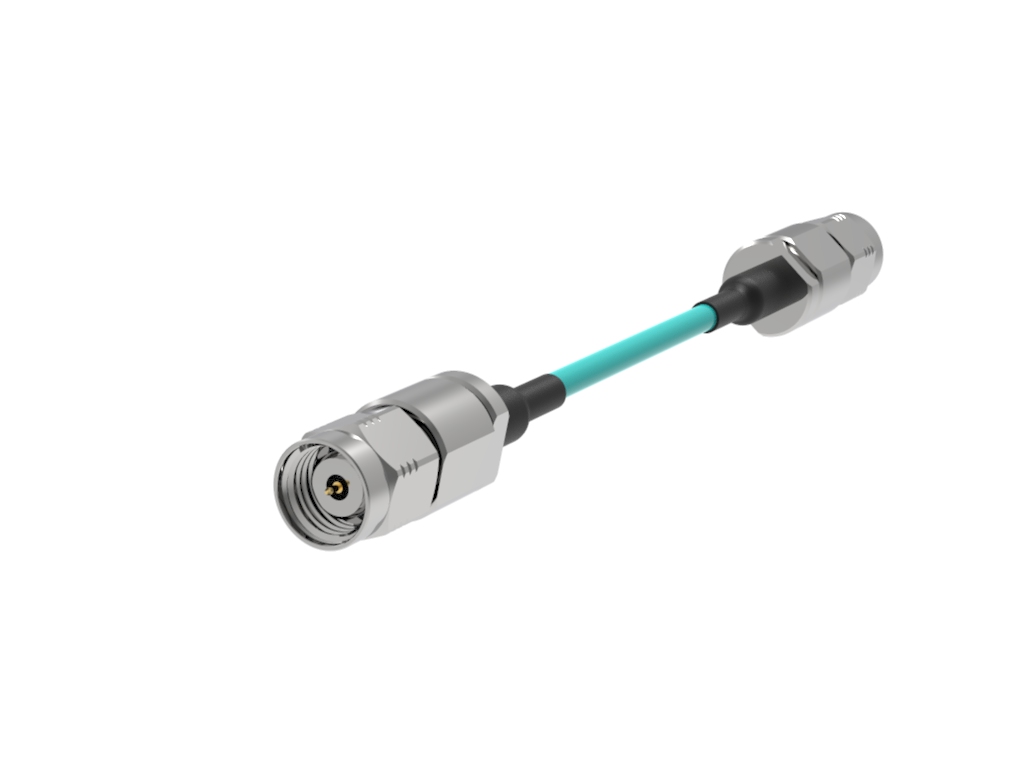

TM7SM9MS5MS0031C

Distributor Quantity Buy
SKU: TM7SM9MS5MS0031C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Passivated SST
RF Connector Specifications
Gender Male to Male
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 26.5 GHz
Center Contact Material BeCu
Body Material SST
Center Contact Plating Gold
Dialectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series 3.5 mm
Connector Style 2.92 mm to 3.5 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features N/A
*
*
*
