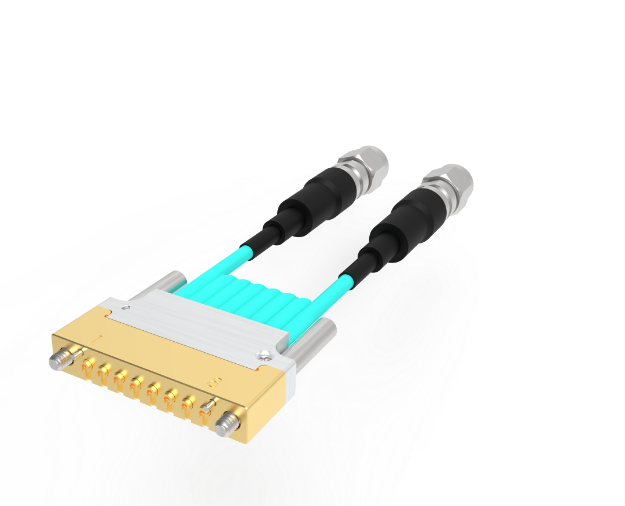

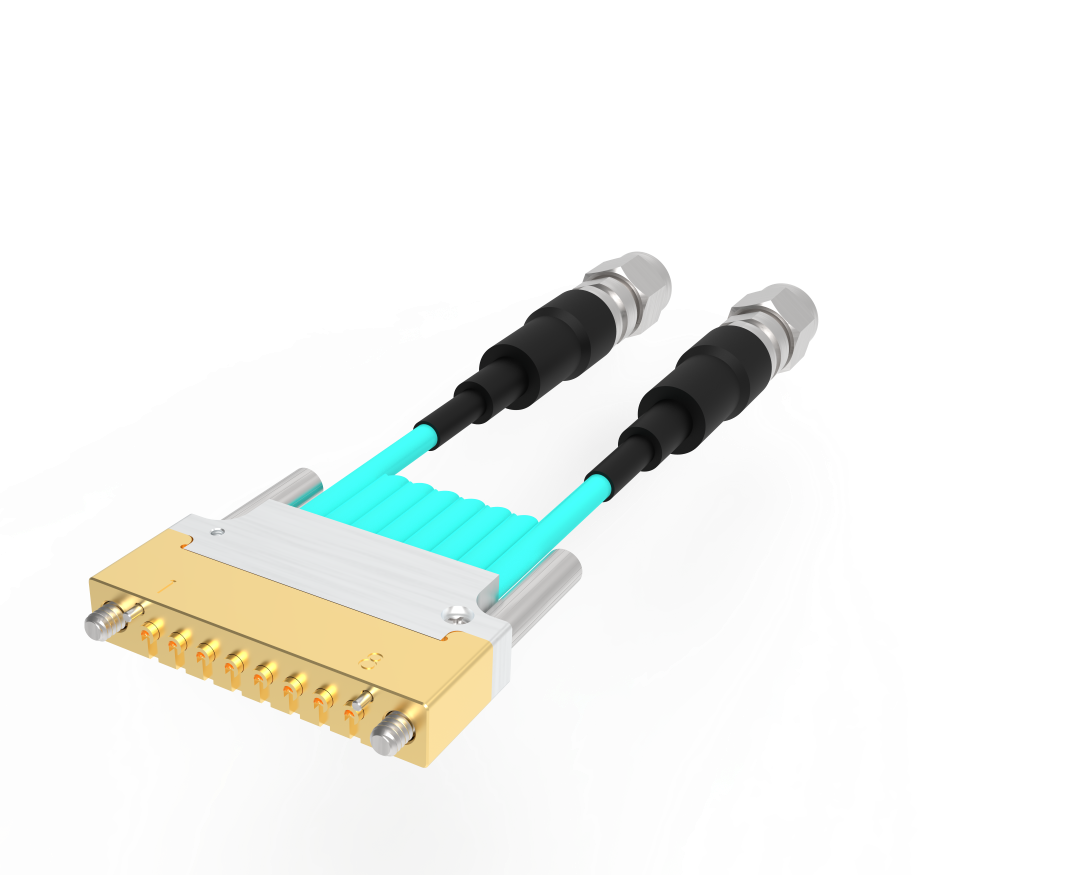

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 16cm long

8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 16cm Length, +/-2ps phase matched
SKU: TM7SSH28S4MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 16cm Length, +/-2ps phase matched
Distributor Quantity Buy
Contact Us
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag
Contact Termination Compression
Number of Ports 16
Housing Finish Gold
RF Connector Specifications
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series CoreHC
Connector Style CoreHC to 2.4 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
RF Products
Gender Male to Male
*
*
*
