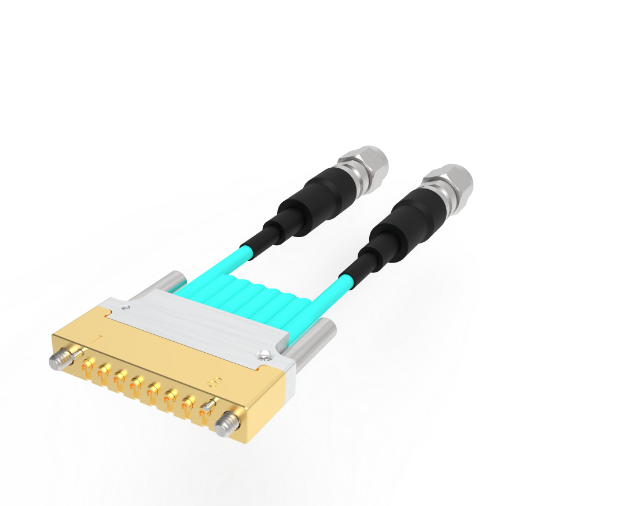

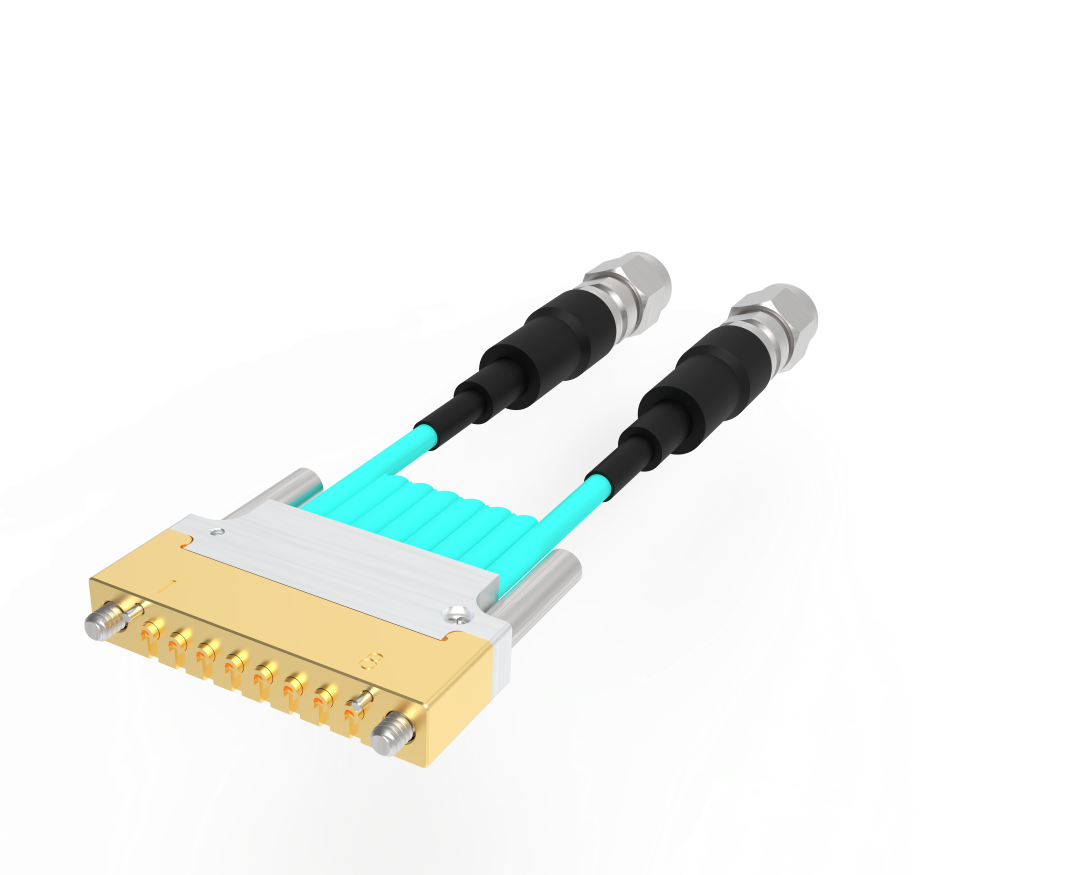

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 31cm long

8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 31cm Length, +/-2ps phase matched
Distributor Quantity Buy
SKU: TM7SSH28S4MS031C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 16
Housing Finish Gold
RF Connector Specifications
Gender Male to Male
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Series CoreHC
Connector Style CoreHC to 2.4 mm
Connector Type N/A
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
