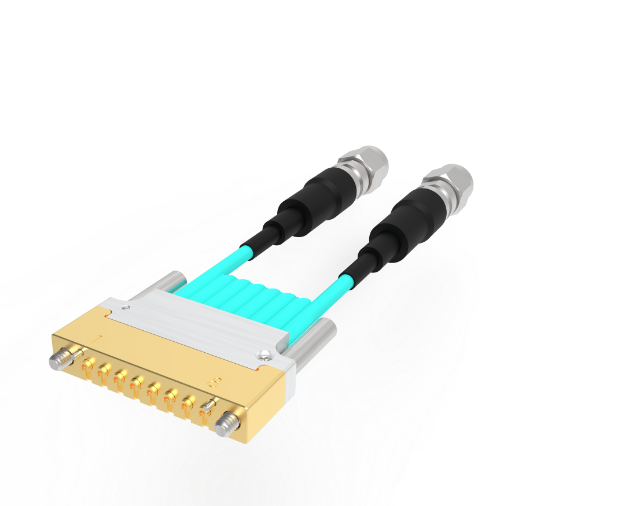

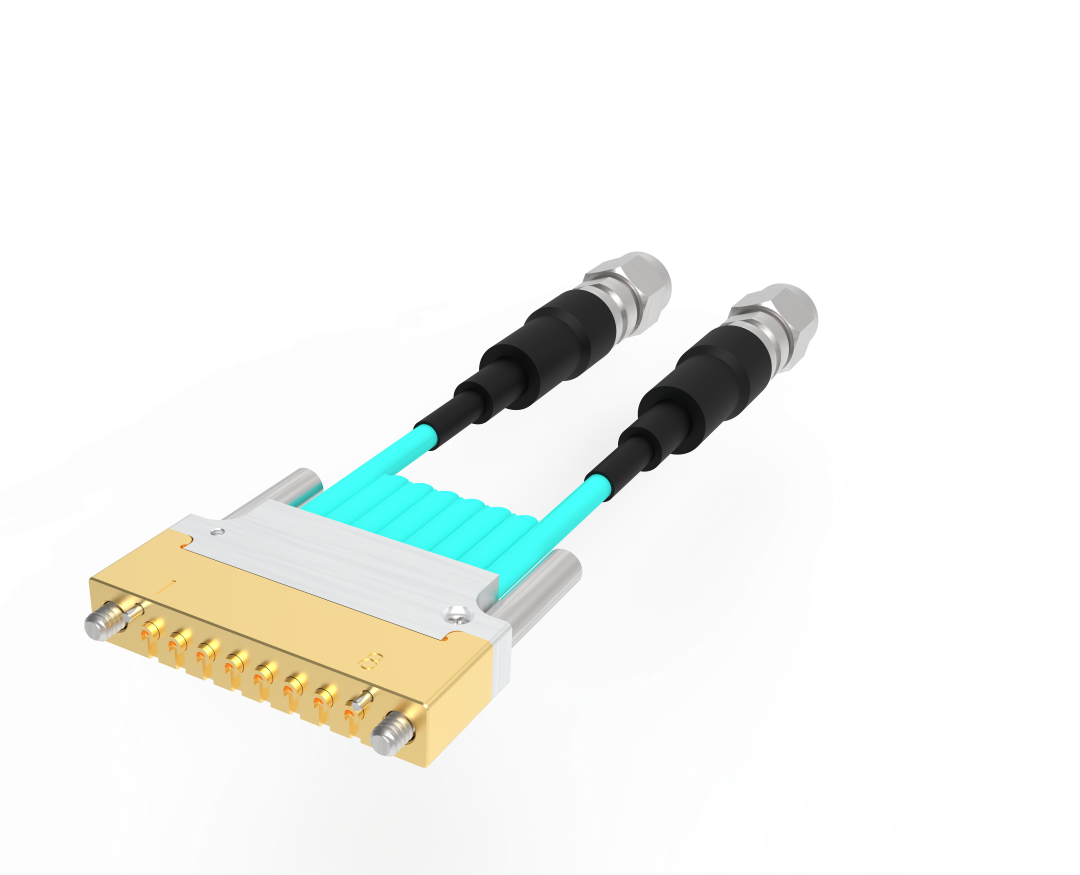

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male. 31cm long

SKU: TM7SSH28S5MS031C

8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 31cm Length, +/-2ps phase matched

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	26.5 GHz
Number of Ports	16
Housing Finish	Gold
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Male
RF Series	CoreHC
RF Series 2	3.5 mm
RF Connector Specifications
Mounting Style	Free Hanging (In-Line)
Center Contact Material	BeCu
Center Contact Plating	Gold
Mating Cycles	1000 cycles min
Connector Series	3.5 mm
T & M Specifications
Series	CoreHC
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
