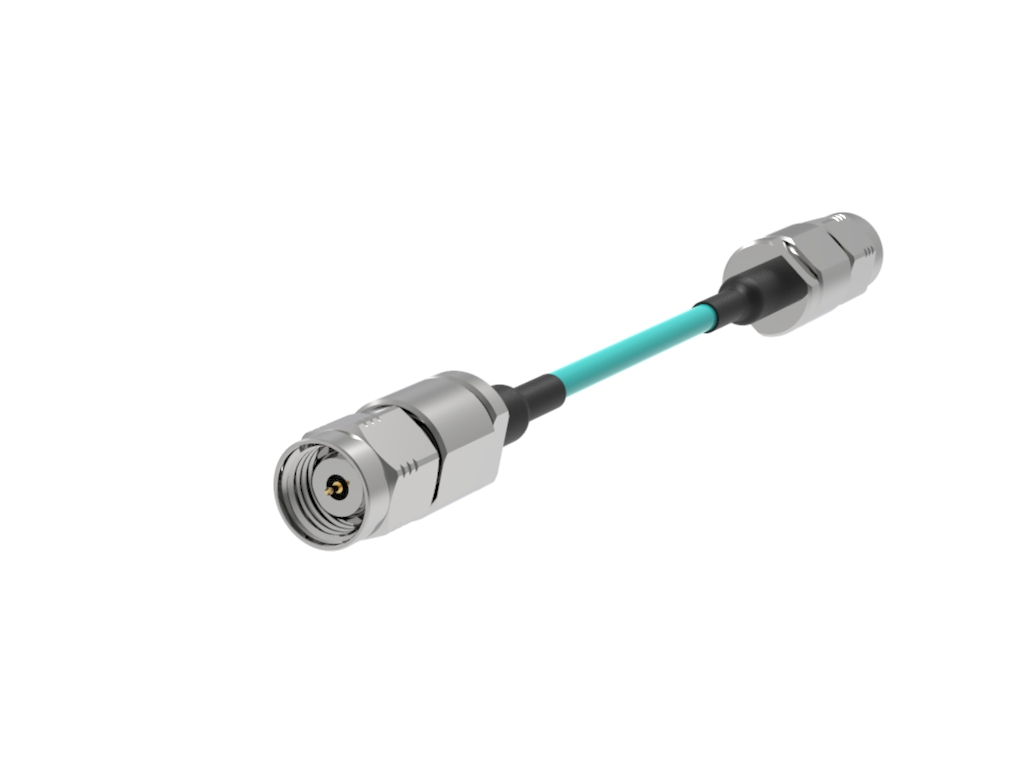

2.4mm Male to 2.4mm Male RF Assembly at 92 cm

0.079" cable diameter, Straight mount 2.4mm Male Connector to Straight Mount 2.4mm Male Connector, 92 cm in length,
Distributor Quantity Buy
SKU: TM7SM4MS4MS0092C
Products specifications
Attribute name Attribute value
Category Cable Assembly, Coaxial Cables (RF)
Packaging Bag - Single
Contact Termination Compression
Number of Ports 2
Housing Finish Gold
RF Connector Specifications
Gender Male to Male
Impedance 50 ohms
Mounting Style Free Hanging (In-Line)
Max Frequency 50 GHz
Center Contact Material BeCu
Body Material N/A
Center Contact Plating Gold
Dielectric Material PTFE
Voltage N/A
Mating Cycles 1000 cycles min
Insertion Loss N/A
Operating Temperature -65°C to +125°C
T & M Specifications
Connector Type N/A
Connector Style 2.4 mm to 2.4 mm
Series 2.4 mm
Shield Termination Threaded
Fastening Type Threaded
Features Field Replicable, Compliant Mount to PCB
*
*
*
