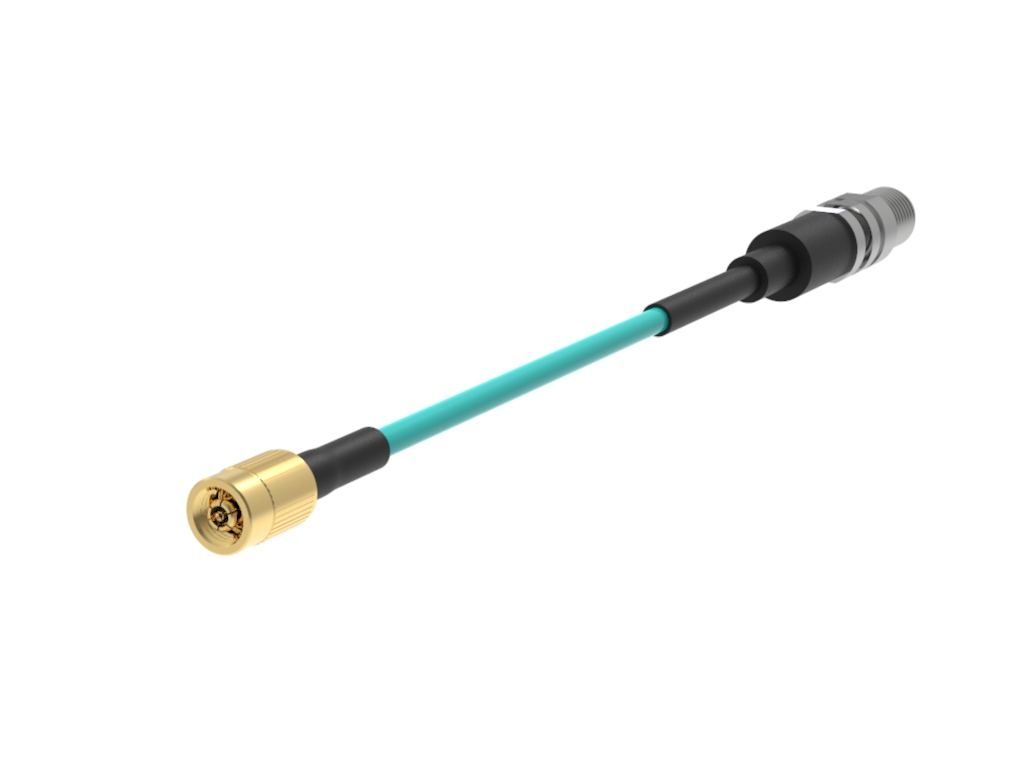

SMPM SecureThread™ to 3.5mm Female RF Assembly at 31 cm

SKU: TM7SMSTS5FS0031C

0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to Straight Mount 3.5mm Female Connector, 31 cm in length

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag
Contact Termination	Compression
Number of Ports	2
Housing Finish	Passivated SST, Gold
RF Connector Specifications
Impedance	50 ohms
Mounting Style	Free Hanging (In-Line)
Max Frequency	26.5 GHz
Center Contact Material	BeCu
Body Material	N/A
Center Contact Plating	Gold
Dielectric Material	PTFE
Voltage	N/A
Mating Cycles	250 cycles min
Insertion Loss	N/A
Operating Temperature	-65°C to +125°C
T & M Specifications
Series	Secure Thread
Connector Style	SSMP ST to 3.5 mm
Connector Type	N/A
Shield Termination	Threaded
Fastening Type	Threaded
Features	N/A
RF Products
Gender	Female to Female
