High-Performance, Low Loss COAX Jumpers
/
CoreHC™ Ganged RF Interconnect System
/
Vertical Launch
/
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 16cm long
Previous
8 channel Vertical Launch C...
Next
8 channel Vertical Launch C...
Share on Facebook
Share on Twitter
Share on Pinterest

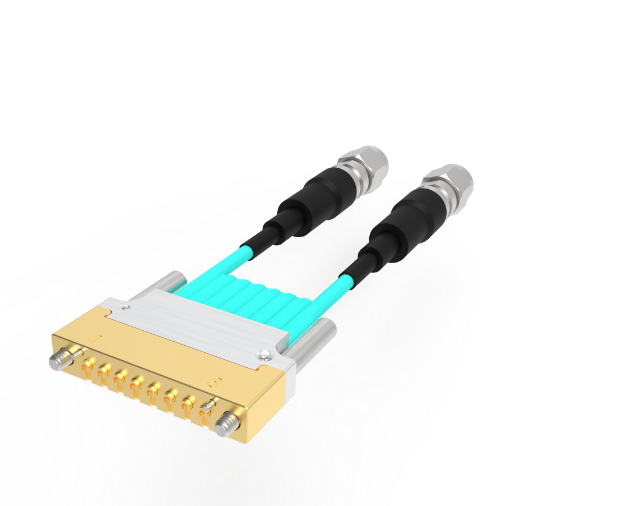

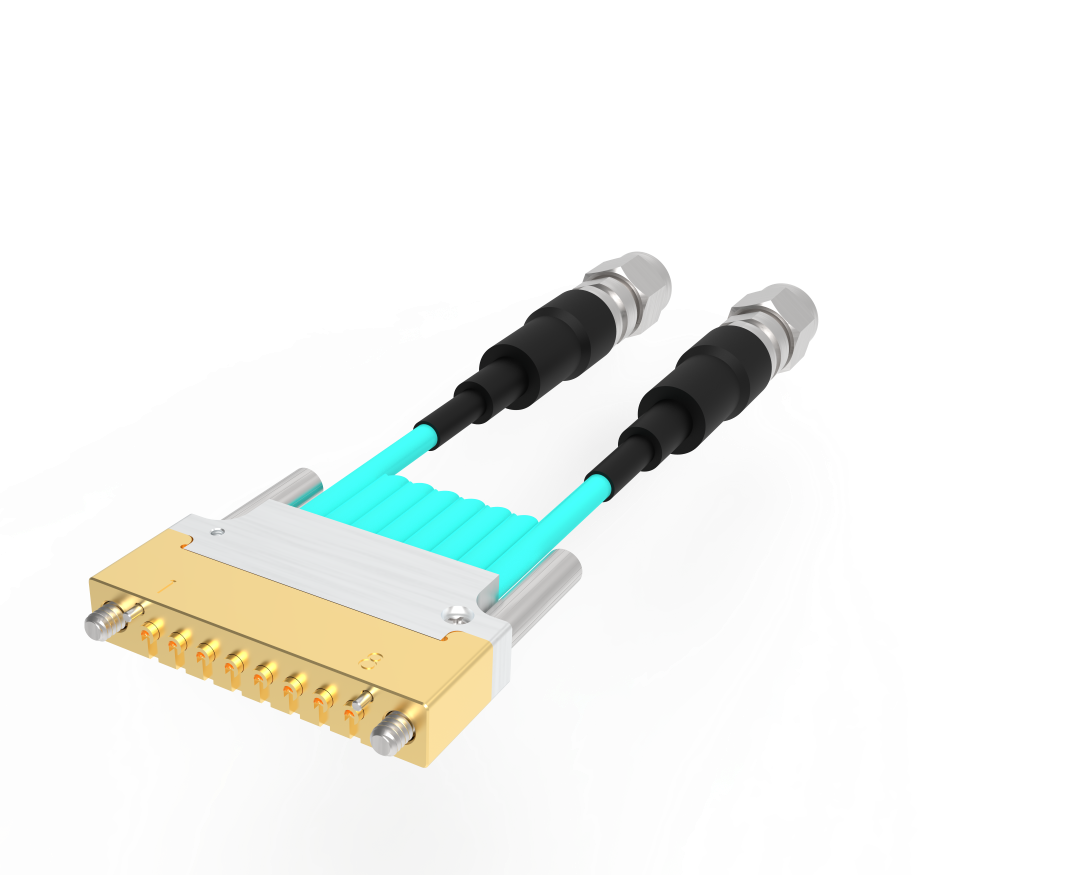

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 16cm long
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
$0.00
Distributor
Quantity
Buy
SKU:
TM7SSH28S9MS016C
Add to wishlist
Add to compare list
Email a friend
Specifications
Contact Us
Products specifications
Attribute name
Attribute value
Category
Cable Assembly, Coaxial Cables (RF)
Packaging
Bag - Single
Contact Termination
Compression
Number of Ports
16
Housing Finish
Gold
RF Connector Specifications
Gender
Male to Male
Impedance
50 ohms
Mounting Style
Free Hanging (In-Line)
Max Frequency
40 GHz
Center Contact Material
BeCu
Body Material
N/A
Center Contact Plating
Gold
Dielectric Material
PTFE
Voltage
N/A
Mating Cycles
1000 cycles min
Insertion Loss
N/A
Operating Temperature
-65°C to +125°C
T & M Specifications
Series
CoreHC
Connector Style
CoreHC to 2.92 mm
Connector Type
N/A
Shield Termination
Threaded
Fastening Type
Threaded
Features
Field Replicable, Compliant Mount to PCB
Your name
*
Your email
*
Enquiry
*
Submit
Products specifications
Attribute name
Attribute value
Category
Cable Assembly, Coaxial Cables (RF)
Packaging
Bag - Single
Contact Termination
Compression
Number of Ports
16
Housing Finish
Gold
RF Connector Specifications
Gender
Male to Male
Impedance
50 ohms
Mounting Style
Free Hanging (In-Line)
Max Frequency
40 GHz
Center Contact Material
BeCu
Body Material
N/A
Center Contact Plating
Gold
Dielectric Material
PTFE
Voltage
N/A
Mating Cycles
1000 cycles min
Insertion Loss
N/A
Operating Temperature
-65°C to +125°C
T & M Specifications
Series
CoreHC
Connector Style
CoreHC to 2.92 mm
Connector Type
N/A
Shield Termination
Threaded
Fastening Type
Threaded
Features
Field Replicable, Compliant Mount to PCB
