COREHC™

Amphenol CDI Core HC Cables

Amphenol CDI Core HC Cables

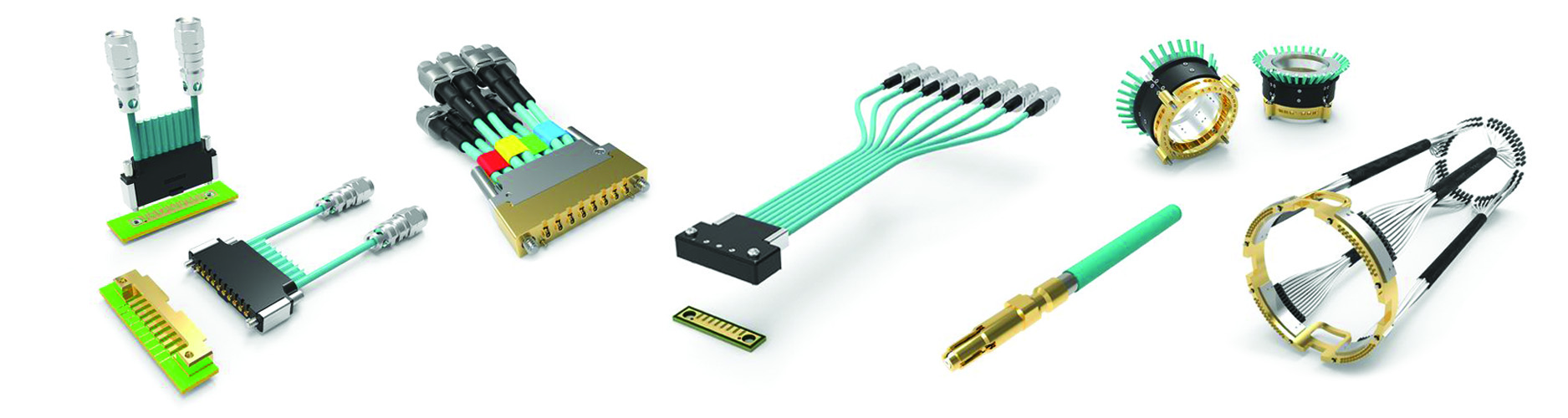

Amphenol CDI CoreHC™ is a high-performance, solderless ganged coaxial solution designed for direct PCB attachment. Featuring a 2.5mm pitch signal-to-signal configuration, it enables engineers to maximize space savings while reducing PCB size and cost. The DC-70GHz connector minimizes trace lengths, optimizing insertion loss and ensuring superior performance. Available in vertical mount, edge mount (blind mate to CoreHC assembly), and right-angle configurations, CoreHC supports a broad performance range for both RF and Digital Applications.



Features and Benefits:

  • Performance: DC – 70Ghz | 56G PAM 4 | 112G PAM
  • Solderless and Repeatable: Ruggedized connector
    with 1000-cycle mate and de-mate repeatability
  • Density: 2.5mm signal-to-signal
  • Ease of Use: Quick attach of Multiple RF/Digital Signals
  • Cost Savings: Reusable across programs and field refurbishable



Performance & Specifications

Measurement Includes a 31cm .078” Ø CoreHC™ Assembly, 25.3 mm of CPW trace, and a 1.85mm Edge Launch



Resources

CoreHC™ DatasheetOptimization Services DatasheetProduct and Services Brochure



Applications

  • Semiconductor Validation and Characterization
  • ATE and Production Test
  • Military and Aerospace
  • Quantum Computing
Grid List
Filters
per page
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male. 16cm long

SKU: TM7SSH28S8MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male, TM7SSH28S8MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 1.85mm Male. 31cm long

SKU: TM7SSH28S8MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 1.85mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 16cm long

SKU: TM7SSH28S4MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male, TM7SSH28S4MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.4mm Male. 31cm long

SKU: TM7SSH28S4MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.4mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS016C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 16cm long

SKU: TM7SSH28S9MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male, TM7SSH28S9MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 2.92mm Male. 31cm long

SKU: TM7SSH28S9MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 2.92mm Male, 31cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, 16cm Long

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male. 16cm long

SKU: TM7SSH28S5MS016C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 16cm Length, +/-2ps phase matched
8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male, TM7SSH28S5MS031C

8 channel Vertical Launch CoreHC Solderless Ganged Interconnect to 3.5mm Male. 31cm long

SKU: TM7SSH28S5MS031C
8 Channel, Vertical Launch, Solderless CoreHC to 3.5mm Male, 31cm Length, +/-2ps phase matched
