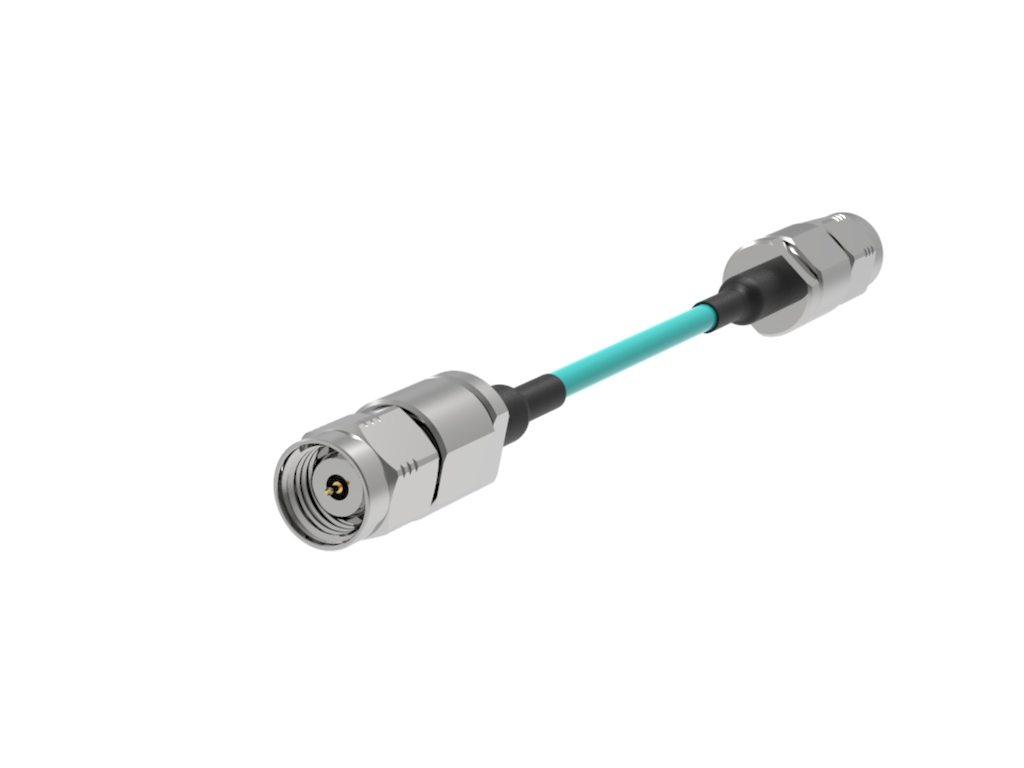

3.5mm Male to 3.5mm Male RF Assembly at 31 cm

SKU: TM7SM5MS5MS0031C

0.079" cable diameter, Straight mount 3.5mm Male Connector to Straight Mount 3.5mm Male Connector, 31 cm in length,

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	26.5 GHz
Number of Ports	2
Housing Finish	Gold
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Male
Body Orientation	Straight
RF Series	3.5 mm
RF Connector Specifications
Mounting Style	Free Hanging (In-Line)
Center Contact Material	BeCu
Center Contact Plating	Gold
Mating Cycles	1000 cycles min
T & M Specifications
Series	3.5 mm
Shield Termination	Threaded
Fastening Type	Threaded
Features	Field Replicable, Compliant Mount to PCB
