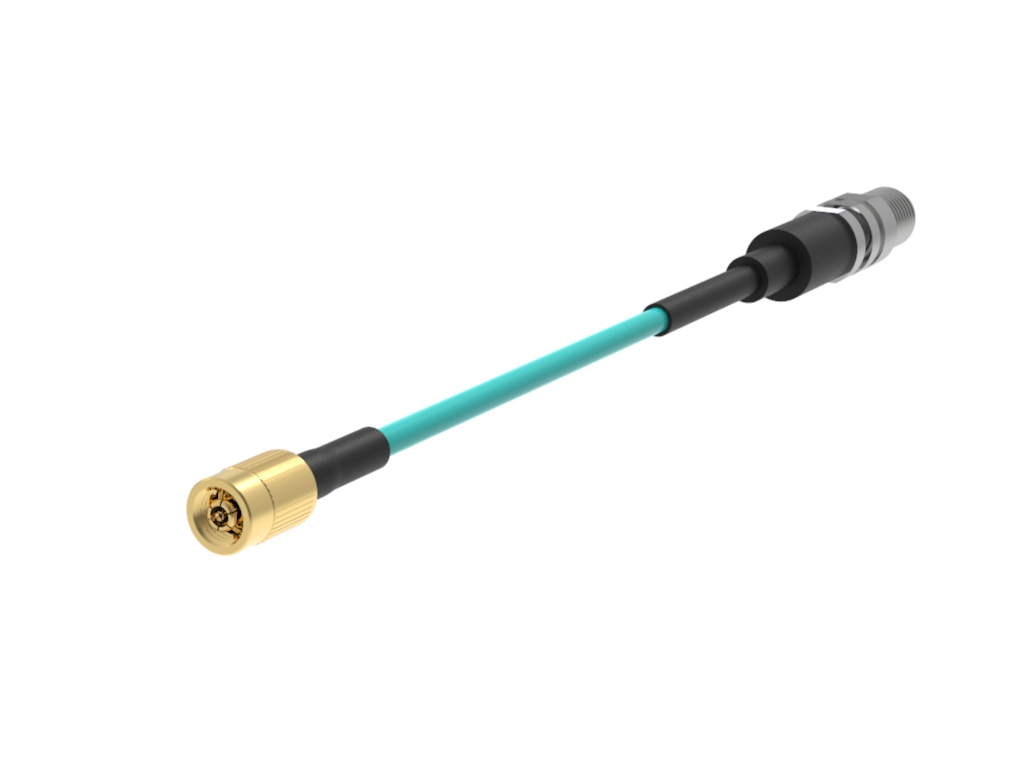

SMPM SecureThread™ to 2.92mm Female RF Assembly at 31 cm

SKU: TM7SMSTS9FS0031C

0.079" cable diameter, Straight mount SMPM SecureThread™ Connector to Straight Mount 2.92mm Female Connector, 31 cm in length

Distributor	Quantity	Buy

Products specifications

Attribute name	Attribute value
Category	Cable Assembly, Coaxial Cables (RF)
Packaging	Bag
Contact Termination	Compression
Impedance	50 ohms
Frequency	40 GHz
Number of Ports	2
Housing Finish	Passivated SST, Gold
Dielectric Material	PTFE
Operating Temperature	-65°C to +125°C
Gender	Female
RF Series	SMPM
RF Series 2	2.92 mm
RF Connector Specifications
Mounting Style	Free Hanging (In-Line)
Center Contact Material	BeCu
Center Contact Plating	Gold
Mating Cycles	250 cycles min
Connector Series	2.92 mm
T & M Specifications
Series	Secure Thread
Shield Termination	Threaded
Fastening Type	Threaded
